X Series E83 X3 2.0d (M47T2) OFFRD
12 42 550
Removing and installing/replacing battery
positive lead between alternator, starter
motor and jump start connection point
(M47T2)
Necessary preliminary tasks:
•
Read out fault memory of DDE control unit; if necessary, work
through test schedules
•
Switch off ignition
•
Disconnect battery negative lead

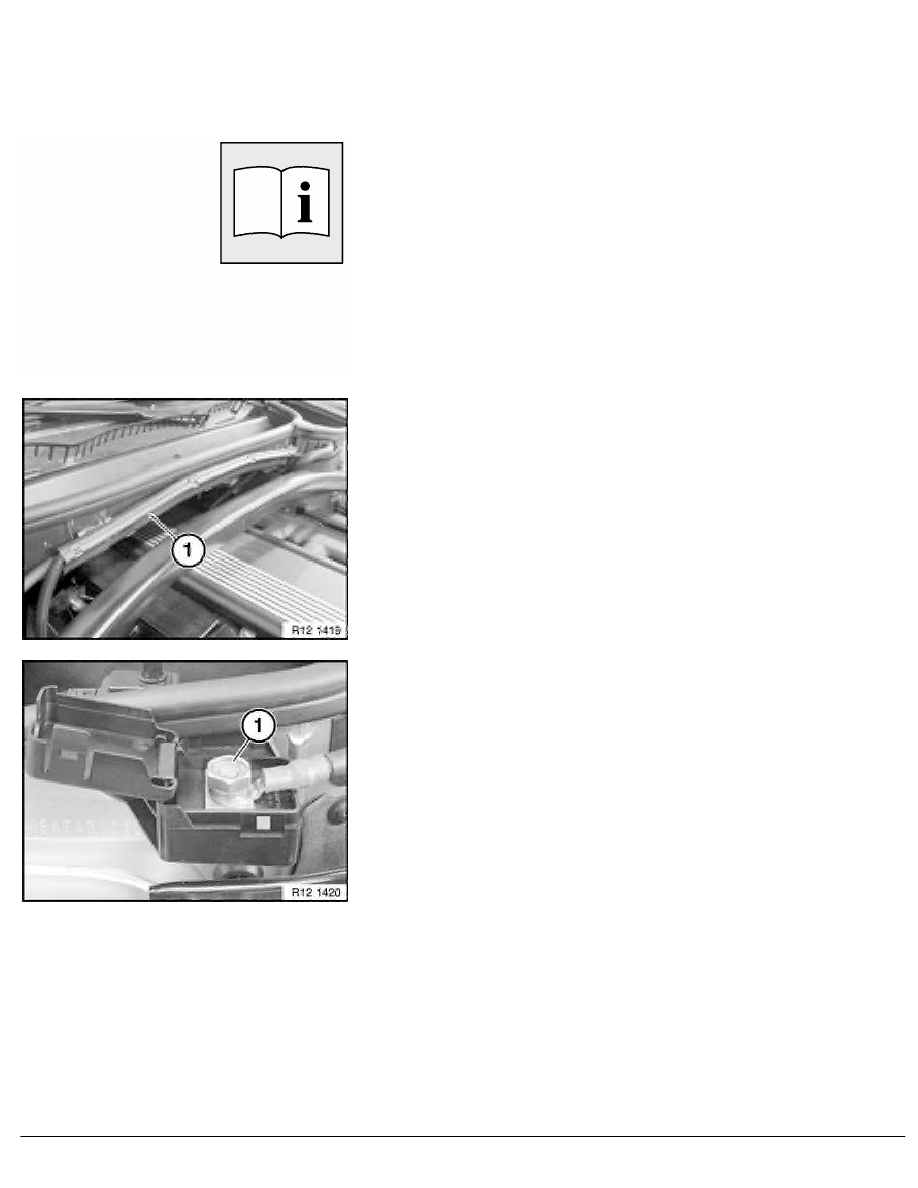

Unclip cover (1).
Open protective cap.
Slacken nut (1).
Tightening torque 12 51 4AZ
.
RA Removing and installing/replacing battery positive lead between alternator, star
BMW AG - TIS
04.02.2013 11:12
Issue status (12/2007) Valid only until next DVD is issued
