X Series E83 X3 2.0d (N47) OFFRD
22 11 001
Replacing right engine mount (N47)
Necessary preliminary tasks:
•
Secure engine in installation position
•
Remove reinforcement plate

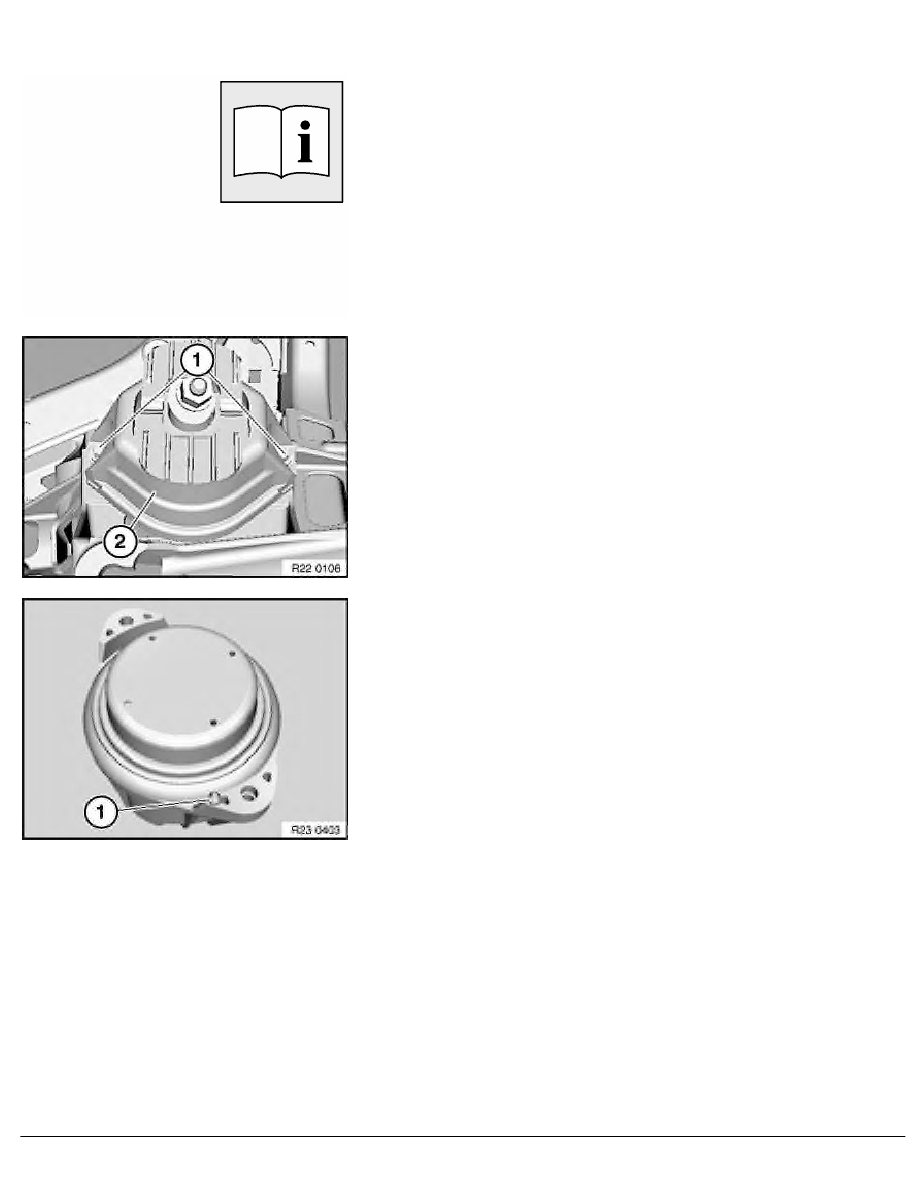

Release screws (1) and remove engine mount (2).
Tightening torque 22 11 1AZ
.
Installation:
Ensure correct position of heat shield.
Installation:
Ensure lug (1) is correctly located.
RA Replacing right engine mount (N47)
BMW AG - TIS
05.02.2013 23:13
Issue status (12/2007) Valid only until next DVD is issued
