X Series E83 X3 2.0d (N47) OFFRD
84 11 519
Removing and installing/replacing eject box
Special tools required:
•
00 9 341

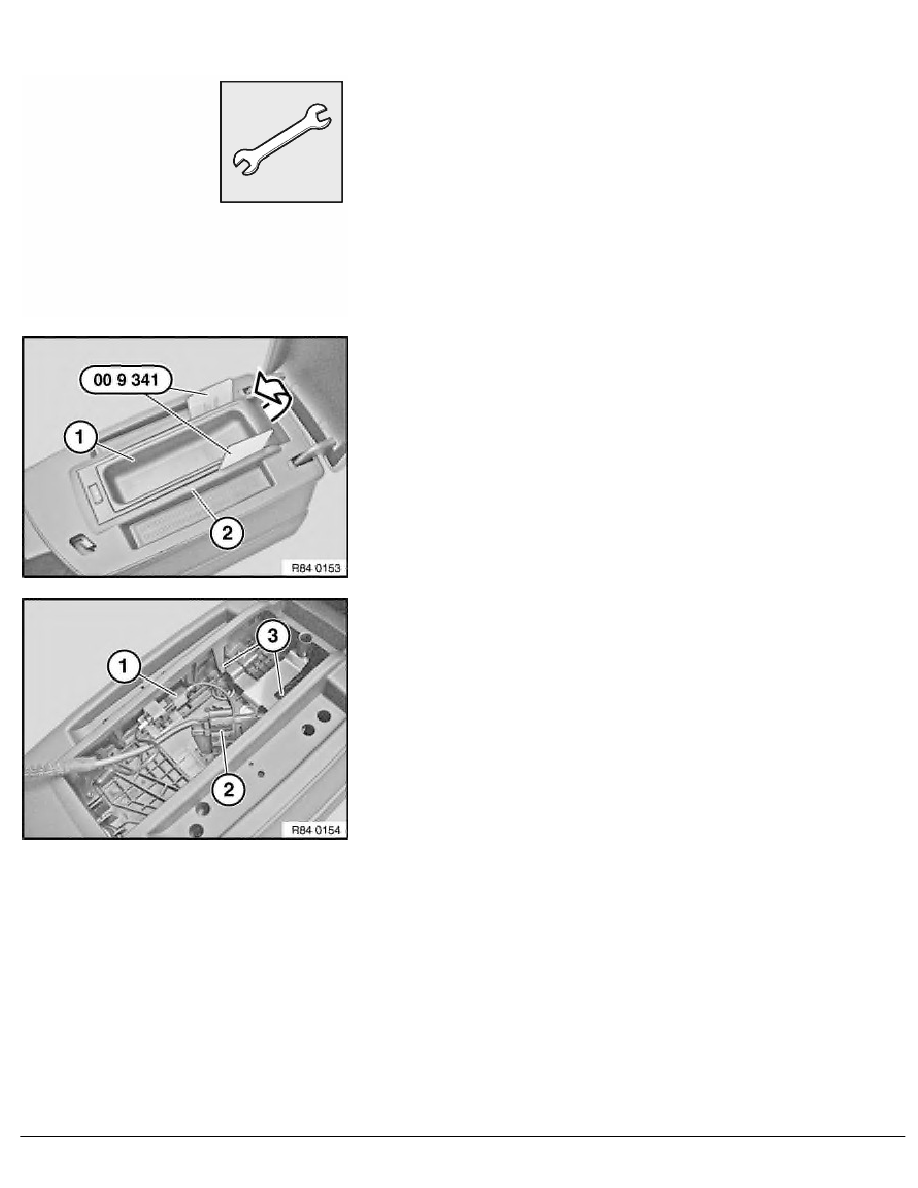

Insert special tool 00 9 341 as shown between eject box (1)
and trim (2).
Pull out eject box (1).
Disconnect plug connections (1 and 2).
Remove eject box.
Installation:
Catches (3) must not be damaged or missing.
RA Removing and installing/replacing eject box
