Important!

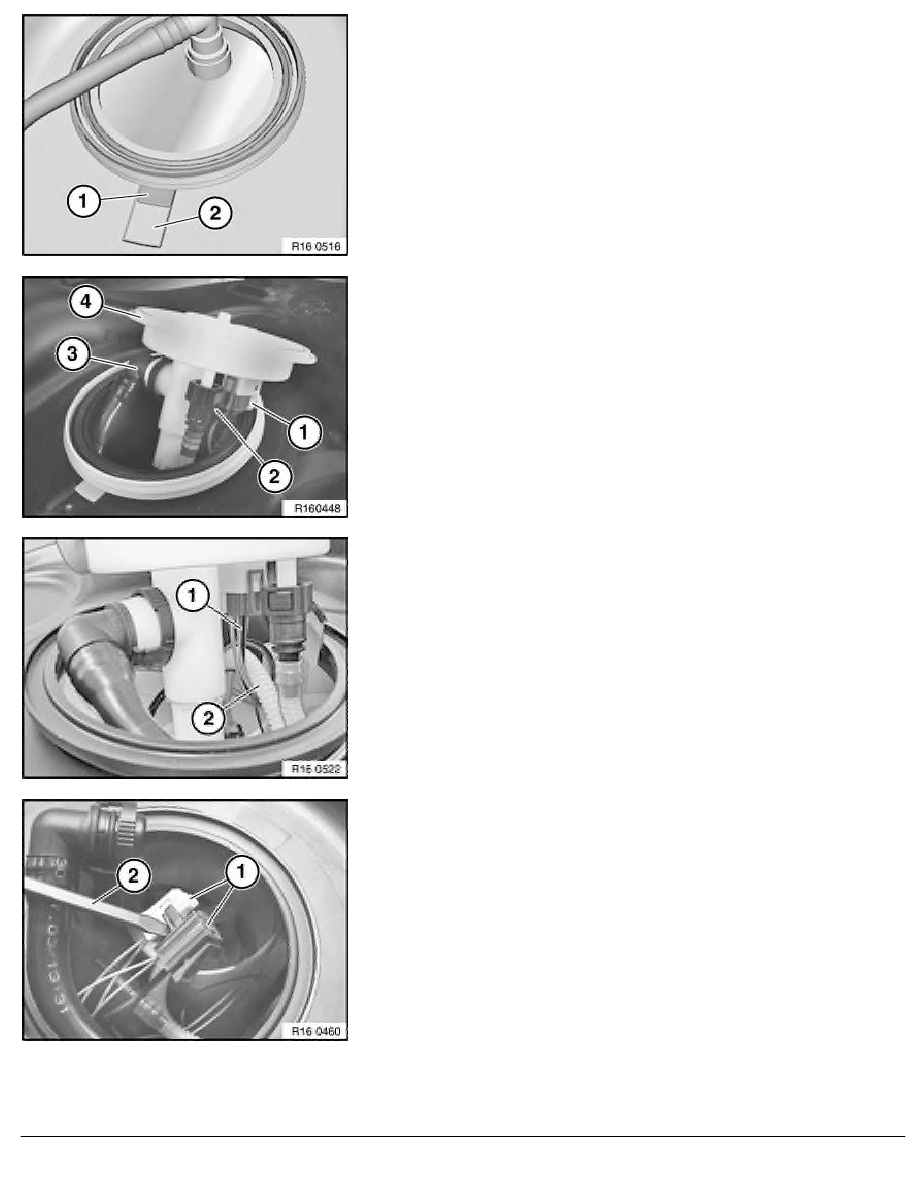

Make sure that tab (1) of adapter ring lies completely in
recess (2).
Carefully raise service cap (4) on right.
Important!
Carefully release quick-release fasteners and detach.
Make sure quick-release fasteners are correctly engaged.
Test the quick-release fasteners by pulling on them.
Unlock and detach fuel line (2).
Detach vent line (3).
Disconnect connector (1).
Installation:
Cable (1) must be laid in a loop around the corrugated tube (2).
Cable must not restrict freedom of movement of lever-type sensor!
Unlock and disconnect plug housing (1) using a screwdriver (2).
RA Removing and installing/replacing fuel pump (petrol/gasoline, N52)
