10 Mufflers, Diesel > < 1 RA Removing And Installing Complete Exhaust System (M54, N52K)
Page 2
background image

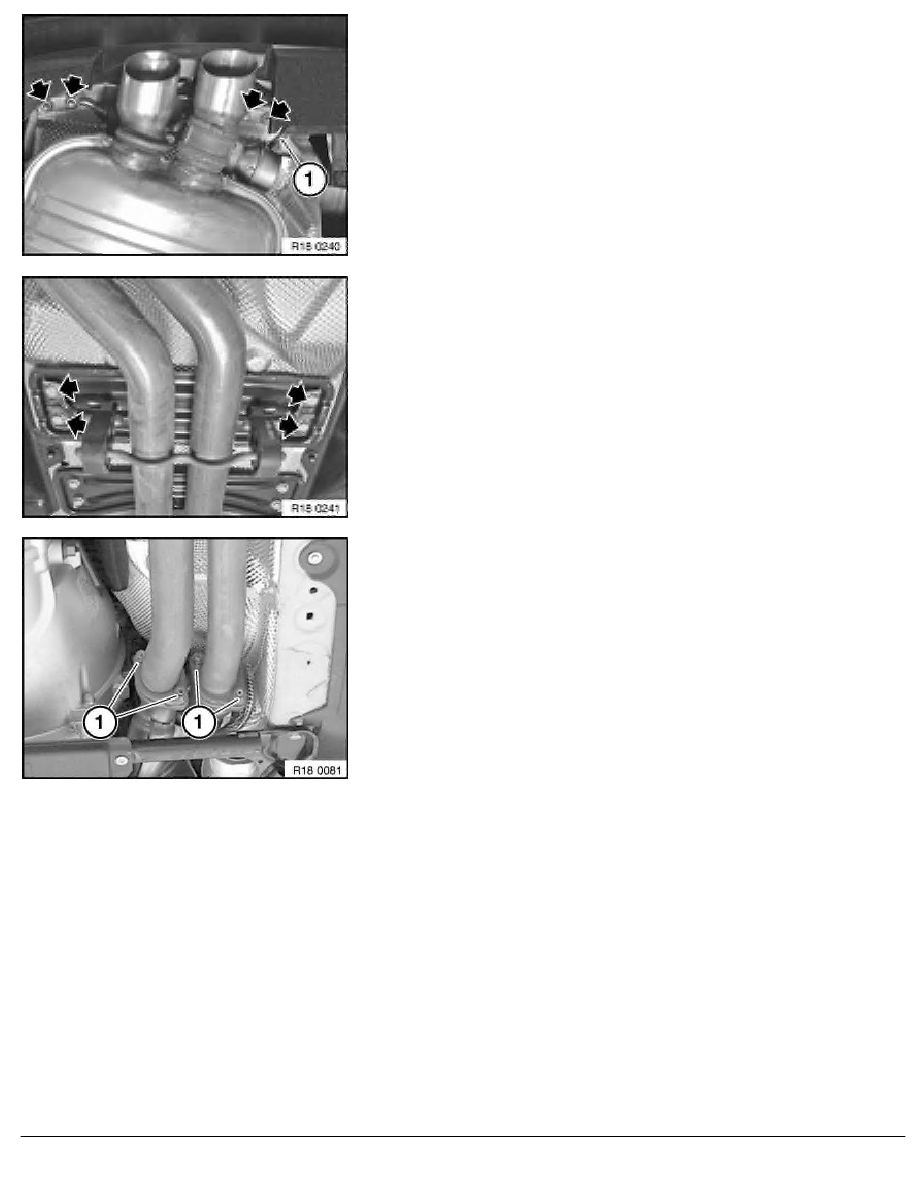

Pull off vacuum hose (1).

Unscrew nuts.

Release screws.

Release nuts (1) and remove complete exhaust system.

Installation:

Replace nuts.

RA  Removing and installing complete exhaust system (M54, N52K)

BMW AG - TIS

11.02.2013  10:21

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 2 -
