X Series E83 X3 2.5Si (N52K) OFFRD

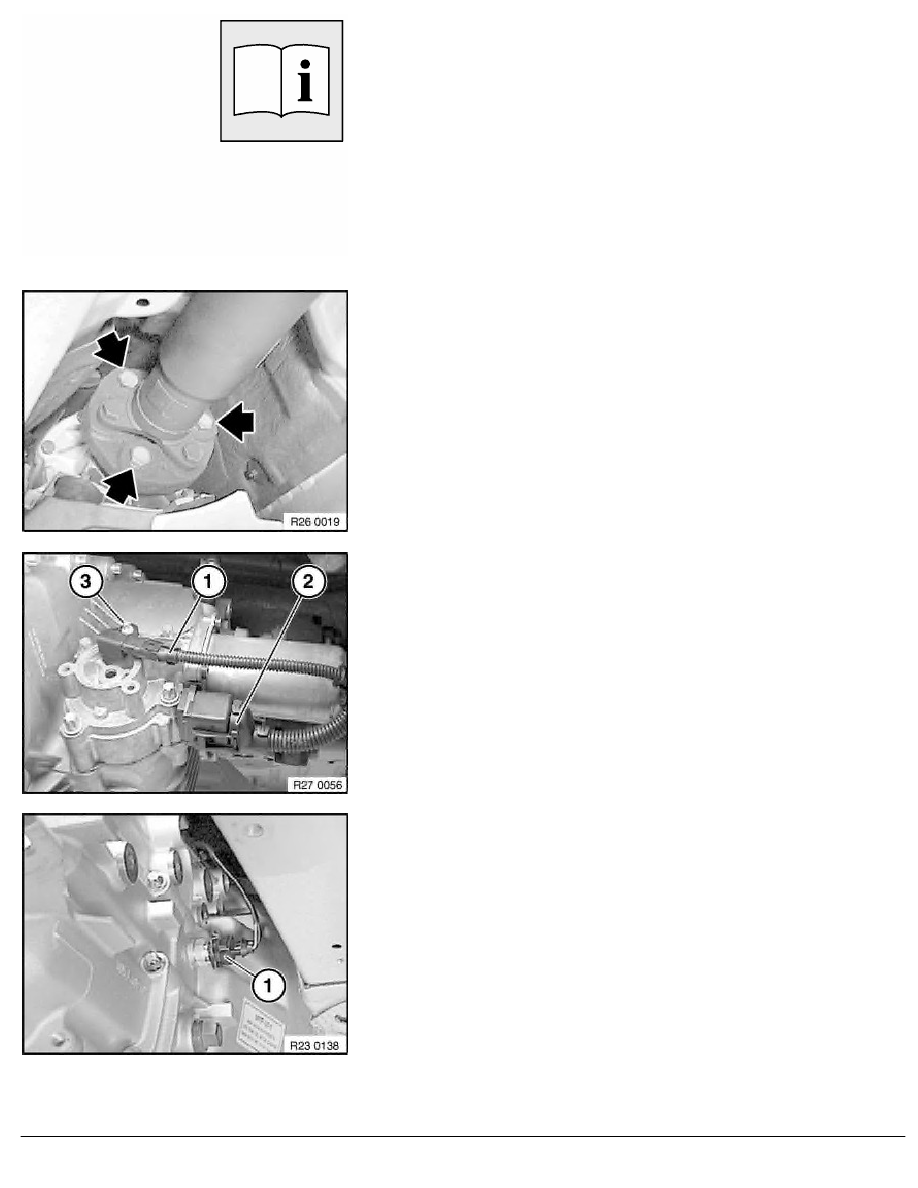

Necessary preliminary tasks:
•
Disconnect battery
•
Remove underbody protection with bracket at front and rear.
•
Remove reinforcement plate
•
Remove complete exhaust system
•
Remove heat shields
•
Remove front propeller shaft at transfer box and tie to one
side
•
Support engine with lifter when removing transmission
-
Remove propeller shaft from transmission.
-
Release centre bearing.
-
Tie propeller shaft to one side.
Tasks are described in Removing propeller shaft.
Detach plugs (1) and (2) from servomotor.
Detach plug (1) from reversing light switch.
Release cable from mountings and tie to one side.
RA Removing and installing transmission (GS6-37BZ N52K)
