X Series E83 X3 2.5Si (N52K) OFFRD

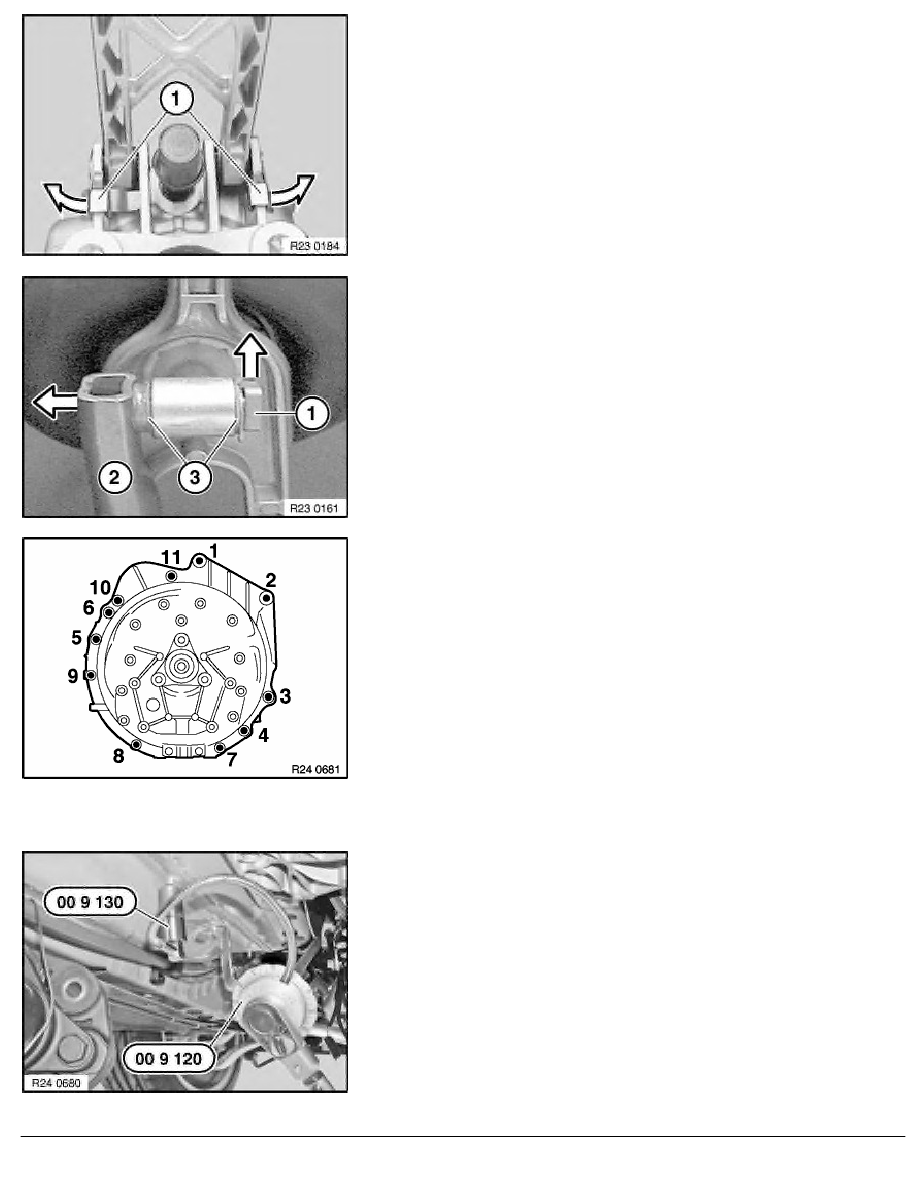

Unlock bearing pin (1) in direction of arrow and remove.
Lift out shift arm.
Installation:
Grease bearing pins (1).
Grease, refer to BMW Service Operating Fluids.
Lift off retainer (1).
Disconnect shift rod (2).
Installation:
Grease shift rod.
Grease, refer to BMW Service Operating Fluids.
Make sure shims (3) are in correct position.
Release screws.
Installation:
Observe screw fastening sequence without fail.
Tightening torque, steel screws 23 00 1AZ
.
Aluminium screws must be replaced.
Tightening torque and angle of rotation
Aluminium screws 23 00 2AZ
.
Important!
Do not allow transmission to hang from the transmission input
shaft when removing and installing, as the clutch disk will be
deformed. Pull transmission downwards and remove.
Installation:
Secure angle of rotation special tool 00 9 120 with magnet
00 9 130 to floor plate.
Screw down aluminium screws according to angle of rotation.
Angle of rotation 23 00 2AZ
.
RA Removing and installing transmission (GS6-37BZ N52K)
