X Series E83 X3 2.5Si (N52K) OFFRD

Page 2
background image

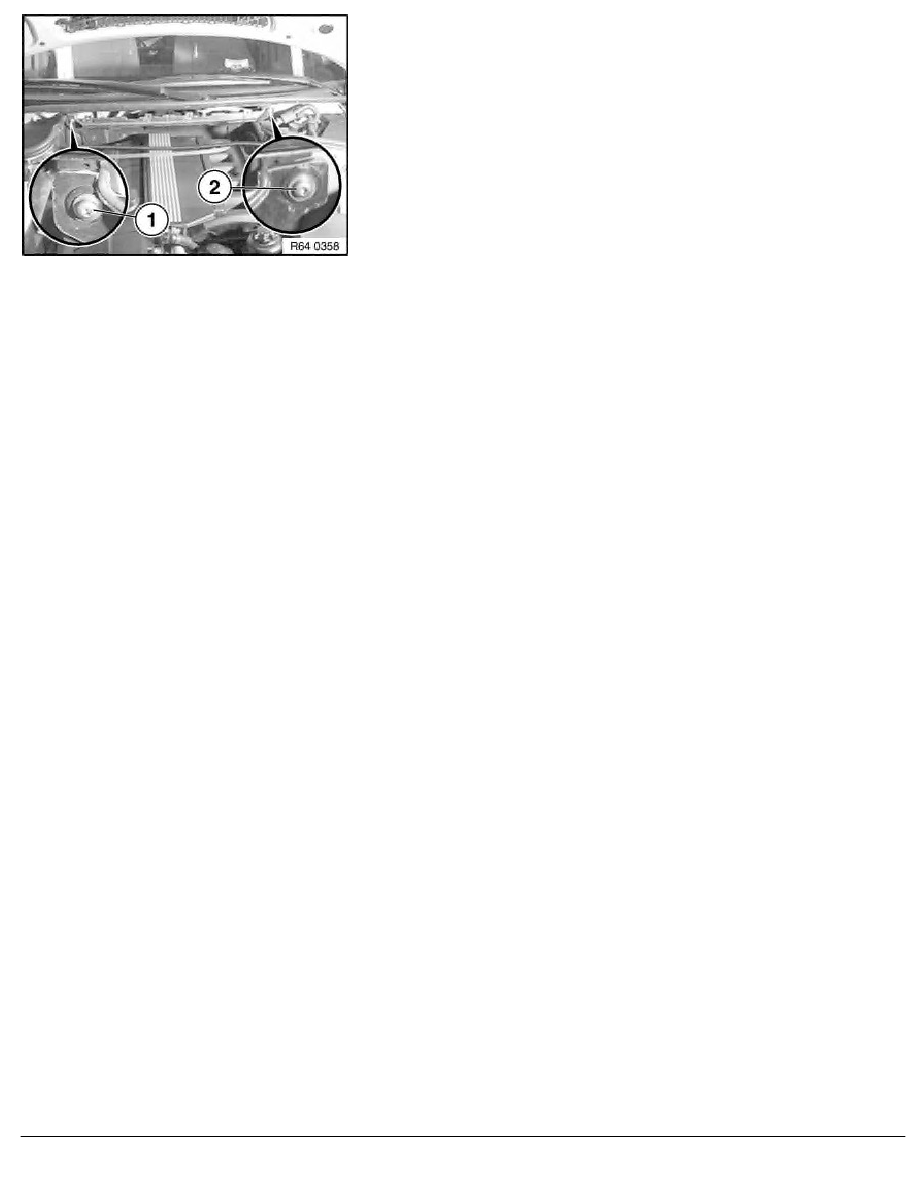

Remove screws (1) and (2).

Lift out heater bulkhead.

RA  Removing and installing/replacing heater bulkhead

BMW AG - TIS

11.02.2013  18:38

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 2 -
