X Series E83 X3 2.5Si (N52K) OFFRD

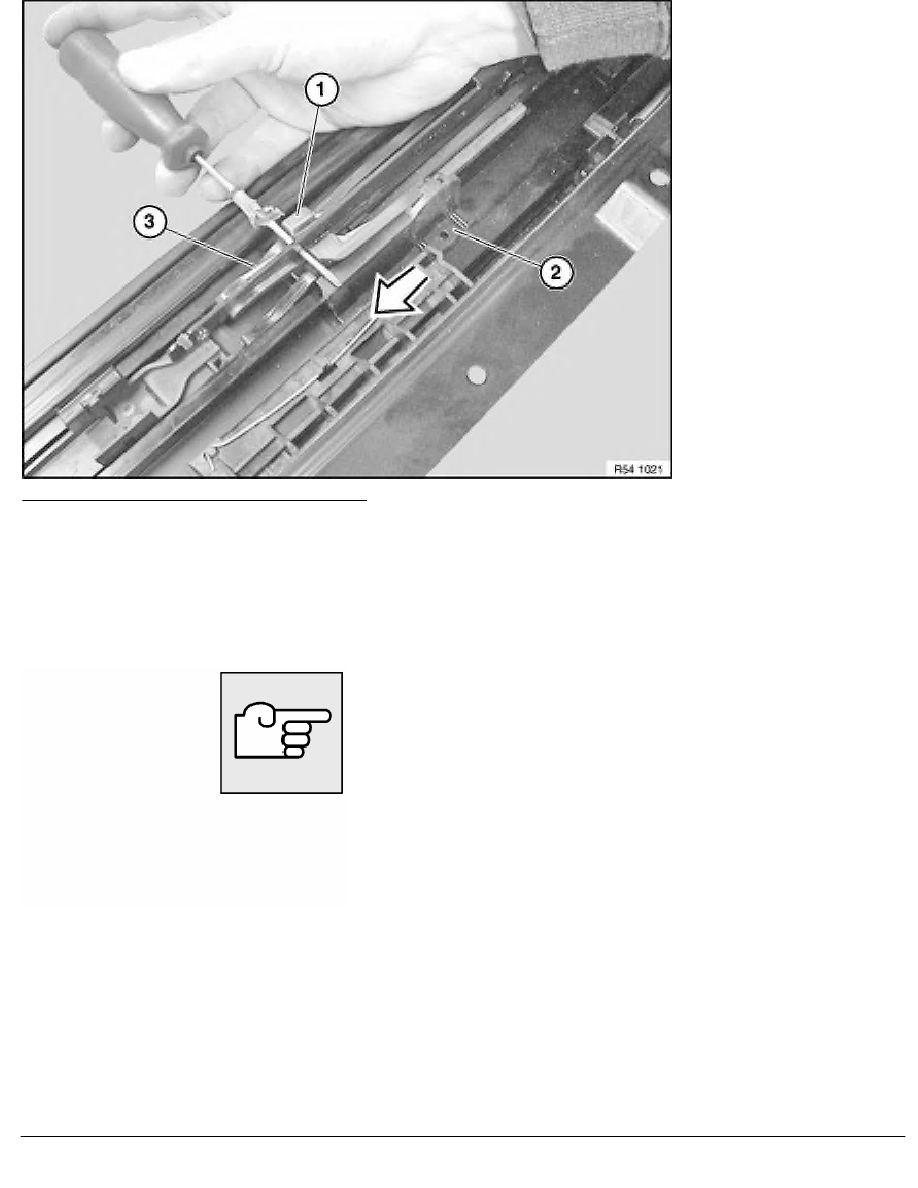

Adjusting mechanism before installing glass lid:
Insert screwdriver into upper connecting link (3).
Slide drive plate (2) towards rear until drive wedge (1) runs against screwdriver.
Note:
Check that mechanical components on left and right sides have same status.
Note:
Check smooth and noise-free running of kinematics.
Check function.
RA Removing and installing mechanism for front glass lid
