X Series E83 X3 2.5Si (N52K) OFFRD
61 31 465
Removing and installing/replacing
relay/module (in device holder on left)
Necessary preliminary tasks:
•
Remove luggage compartment floor trim panel
•
Disconnect battery negative lead

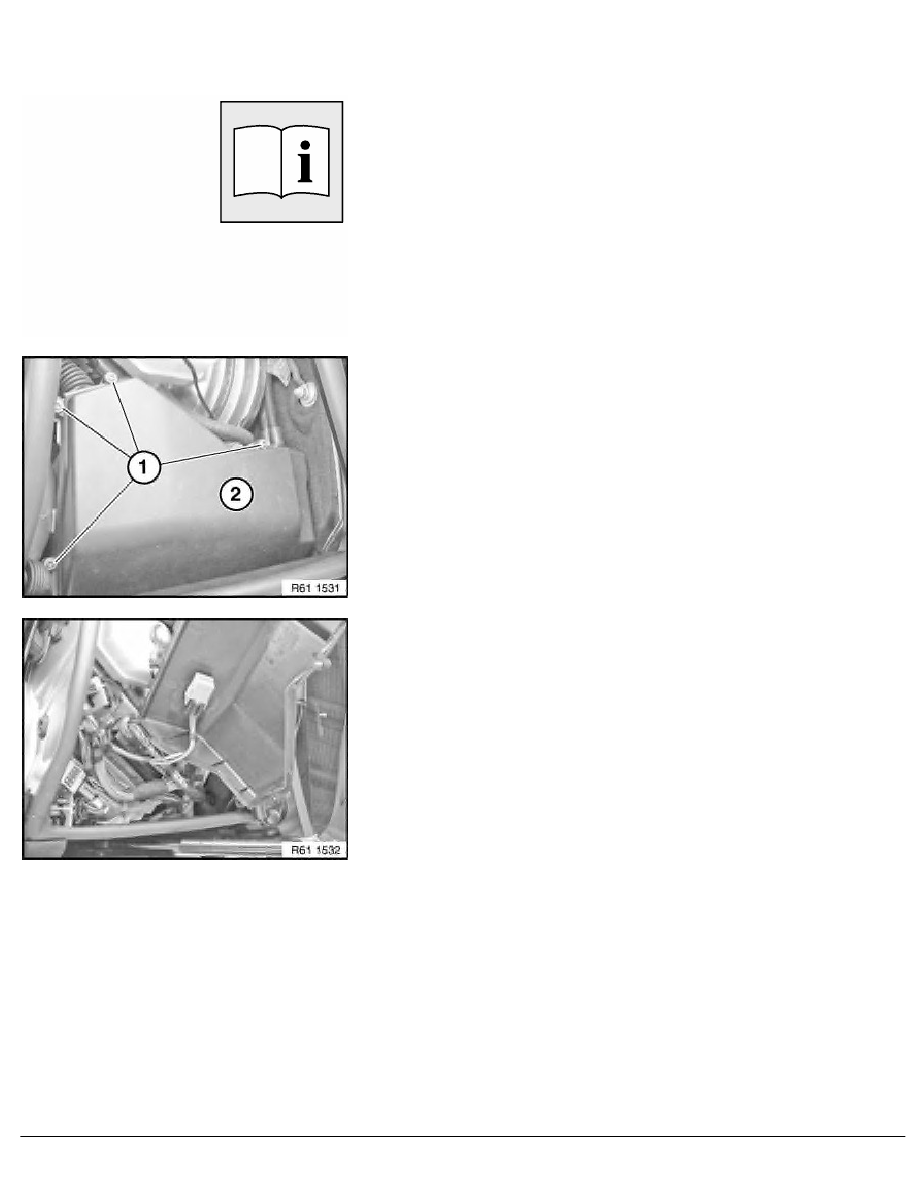

Release screws (1).
Remove electronics box cover (2).
Detach relay.
RA Removing and installing/replacing relay/module (in device holder on left)
BMW AG - TIS
11.02.2013 21:00
Issue status (12/2007) Valid only until next DVD is issued
