X Series E83 X3 2.5Si (N52K) OFFRD

Page 1
background image

65 13 080

Removing and installing/replacing speaker
(tweeter in rear door)

Necessary preliminary tasks:

•

Remove rear door trim

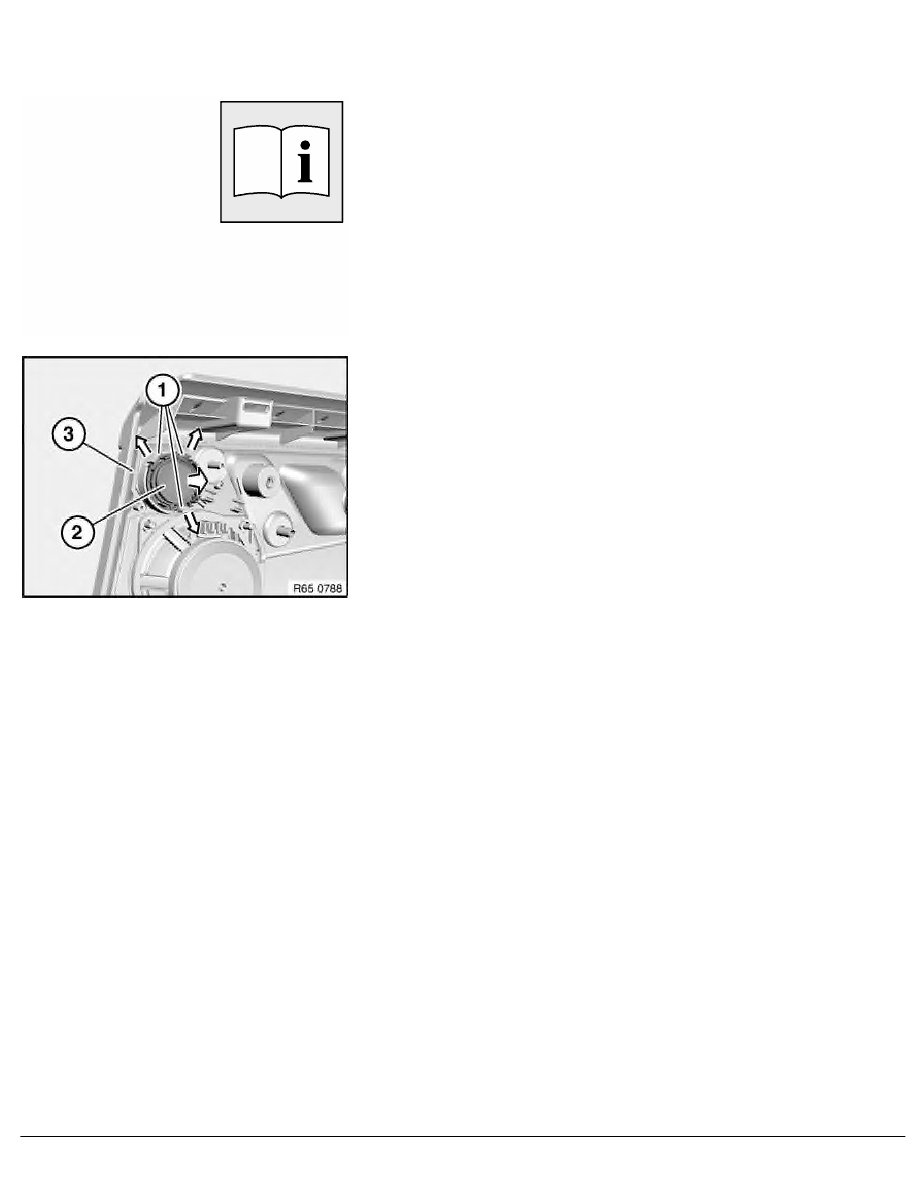

Unlock catches (1) in direction of arrow and remove tweeter (2)
from rear door trim panel (3).

RA  Removing and installing/replacing speaker (tweeter in rear door)

BMW AG - TIS

12.02.2013  00:56

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 1 -
