X Series E83 X3 3.0d (M57T2) OFFRD
26 11 000

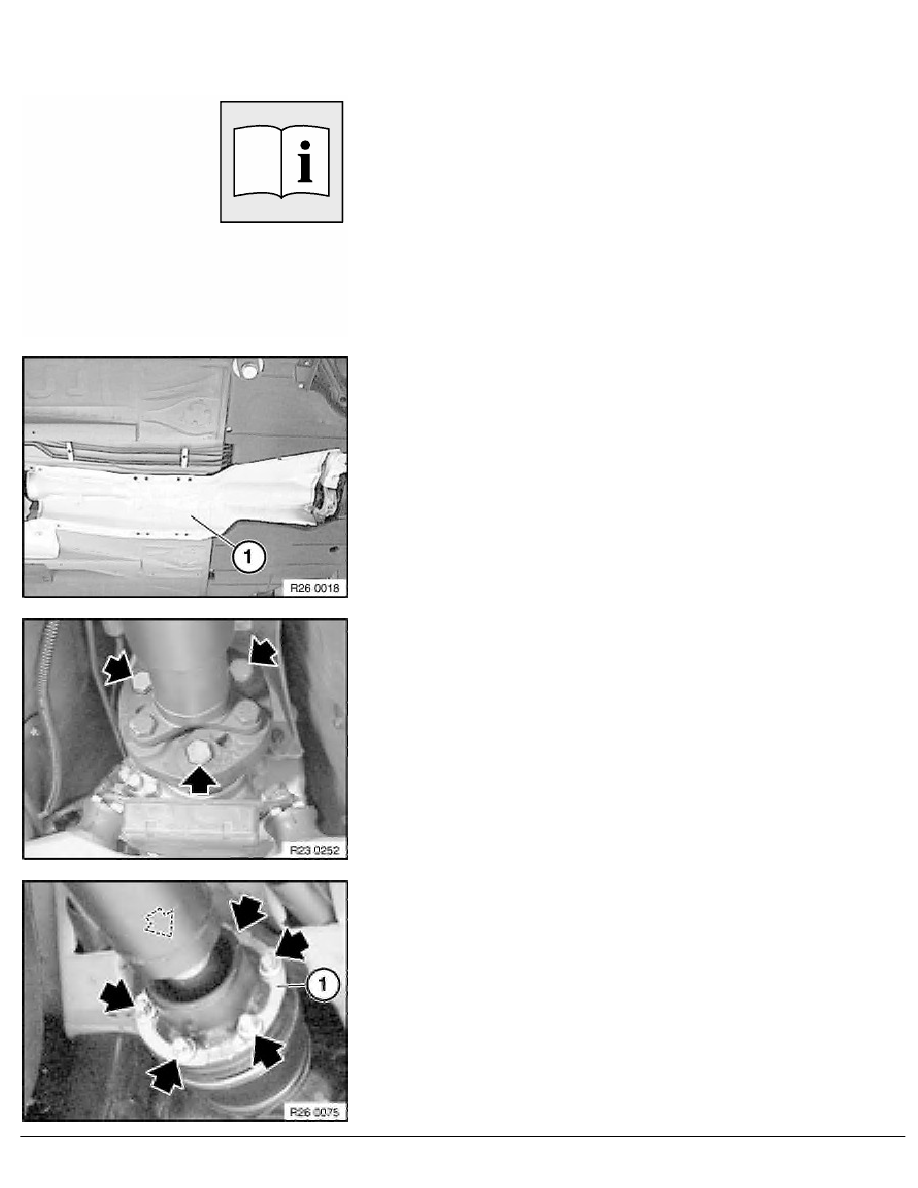

Removing and installing complete propeller
shaft (constant-velocity joint)
Necessary preliminary tasks:
•
Remove rear underbody protection from assemblies.
•
Remove complete exhaust system.
Remove heat shield (1).
Unfasten screws.
Installation:
Replace self-locking nuts.
Tightening torque 26 11 1AZ
.
Unfasten screws.
Tightening torque 26 11 4AZ
.
RA Removing and installing complete propeller shaft (constant-velocity joint)
BMW AG - TIS
13.02.2013 00:58
Issue status (12/2007) Valid only until next DVD is issued
