X Series E83 X3 3.0d (M57T2) OFFRD
51 12 156

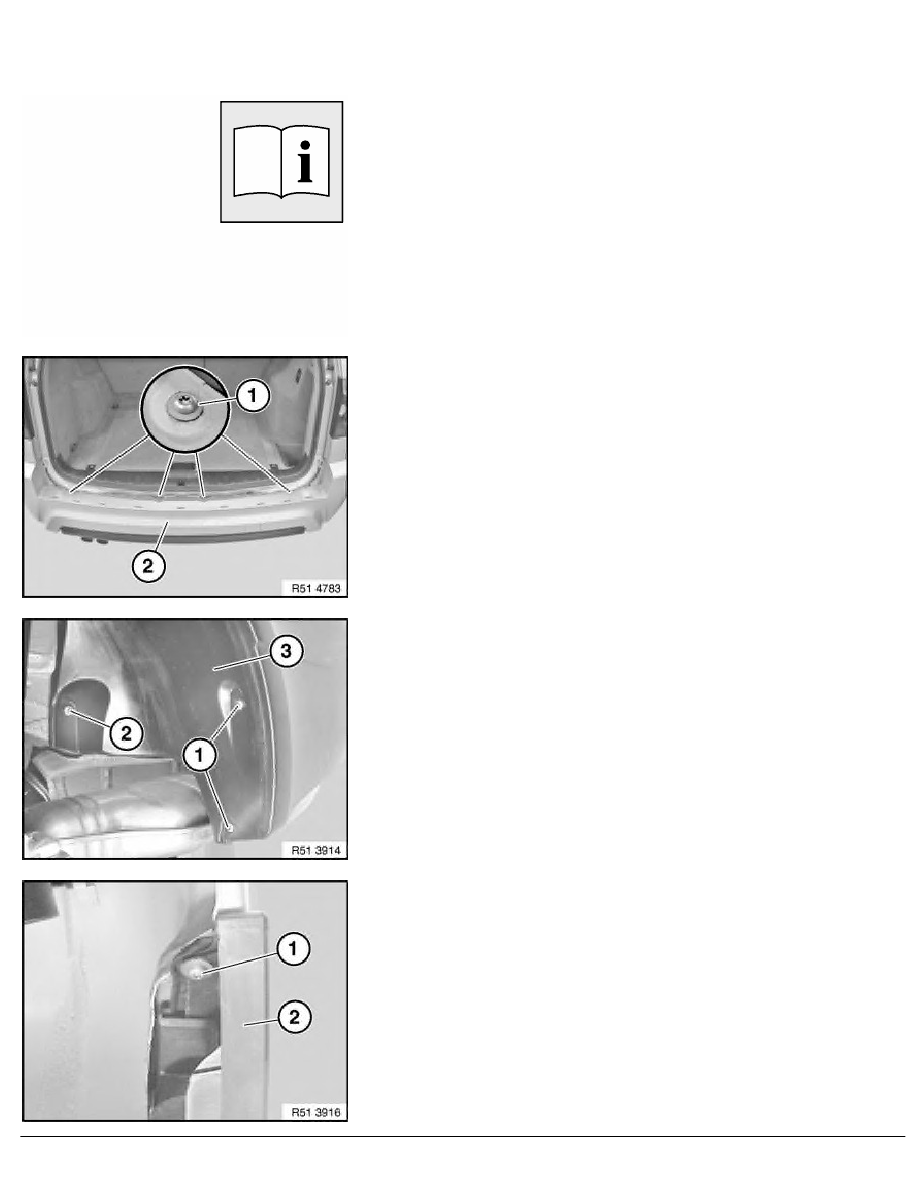

Removing and installing rear bumper trim
(from 09/2006)
Necessary preliminary tasks:
•
Remove trim on loading sill
Release screws (1) on bumper trim (2).
Release screws (1) and nut (2) on left and right.
Installation:
Make sure wheel arch trim (3) is in correct position.
Press wheel arch trim slightly to one side and release screw (1)
on bumper trim (2) on left and right.
RA Removing and installing rear bumper trim (from 09/2006)
BMW AG - TIS
13.02.2013 06:32
Issue status (12/2007) Valid only until next DVD is issued
