X Series E83 X3 3.0d (M57T2) OFFRD
51 16 040
Removing and installing/replacing housing on
left or right door mirror
Special tools required:
•
00 9 317
Necessary preliminary tasks:
•
Remove mirror glass
Note:

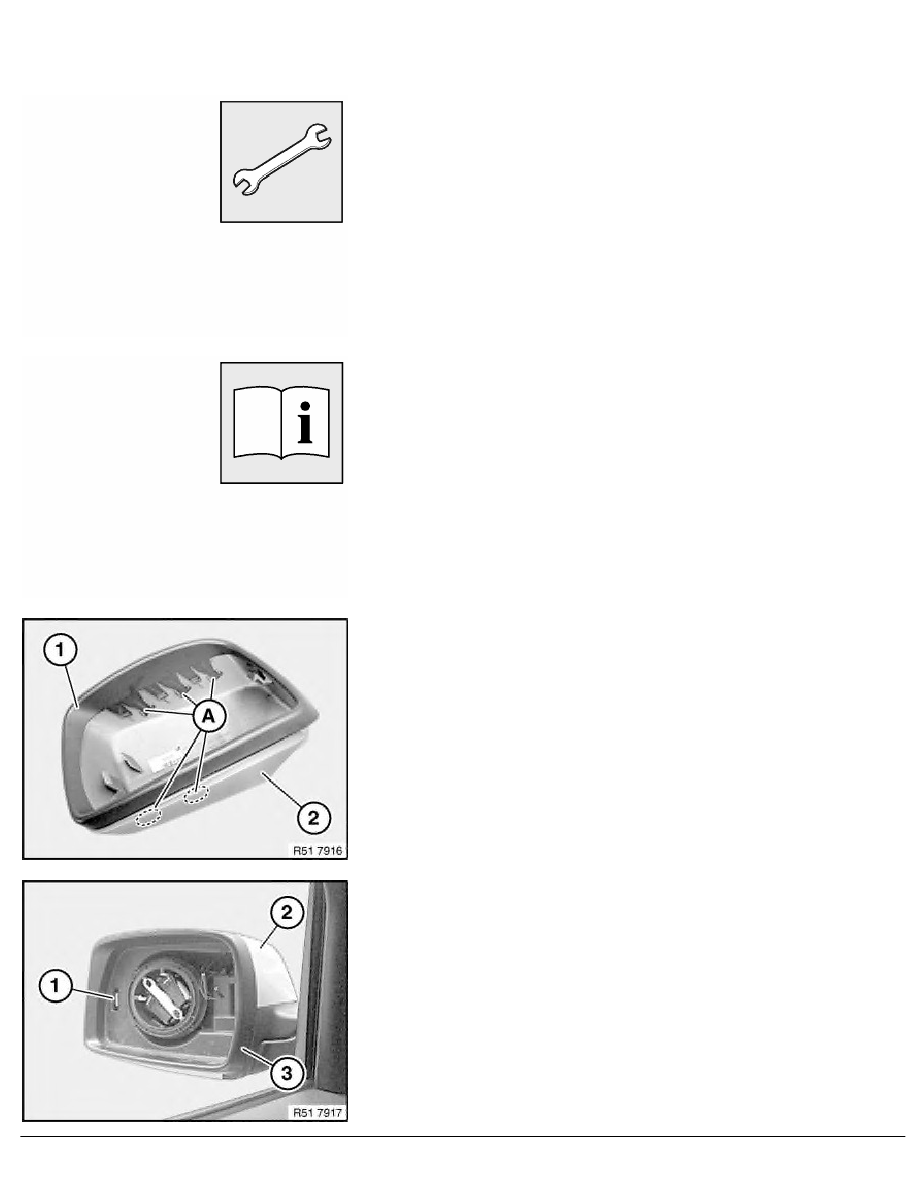

Retaining ring (1) and housing (2) are engaged against each
other in area (A).
Release catch (1) and carefully snap housing (2) forwards out of
retaining ring (3).
If necessary, use special tool 00 9 317 as an aid.
RA Removing and installing/replacing housing on left or right door mirror
