X Series E83 X3 3.0i (M54) OFFRD
61 33 040
Removing and installing/replacing a fanfare
horn (left or right)
Necessary preliminary tasks:
•
Remove front underbody protection

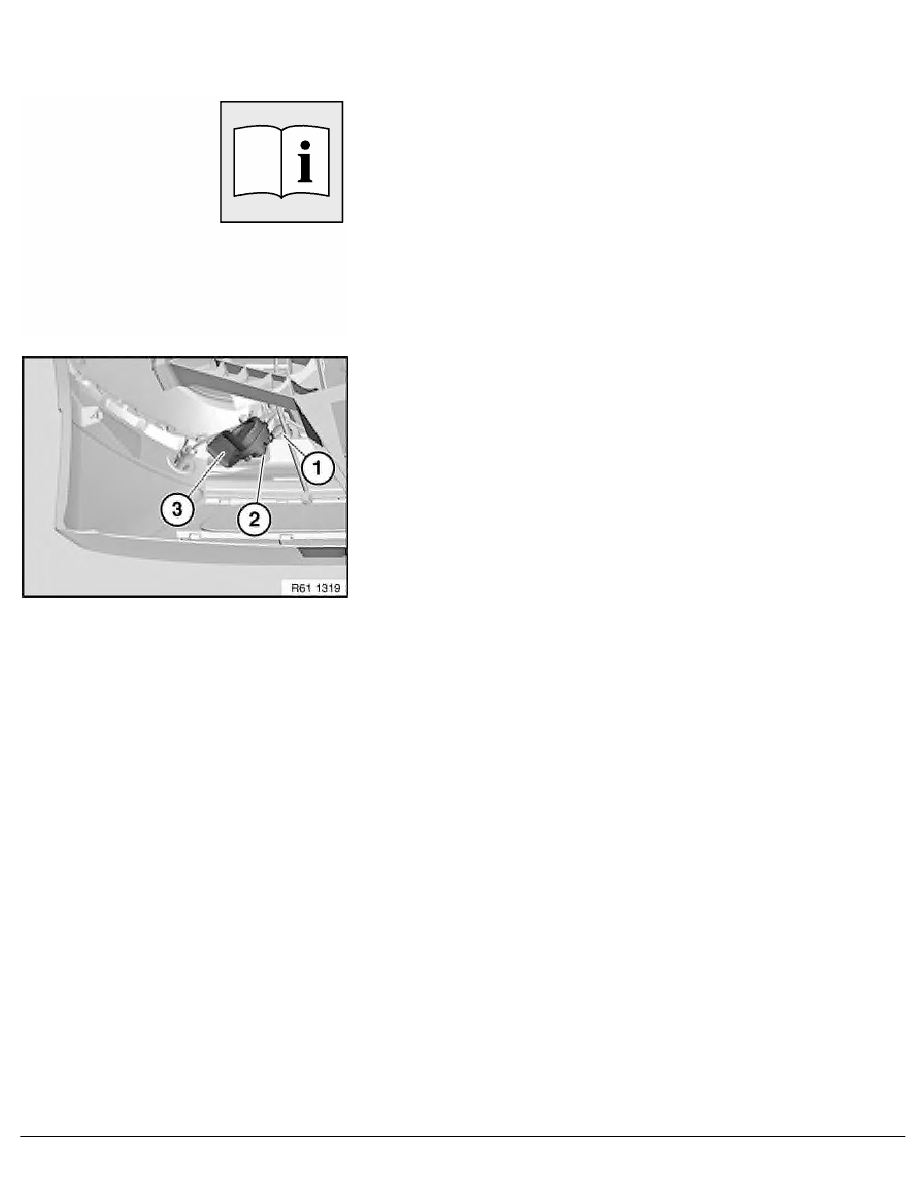

Unfasten plug connection (1) and disconnect.
Release nut (2) and remove fanfare horn (3).
RA Removing and installing/replacing a fanfare horn (left or right)
BMW AG - TIS
17.02.2013 02:03
Issue status (12/2007) Valid only until next DVD is issued
