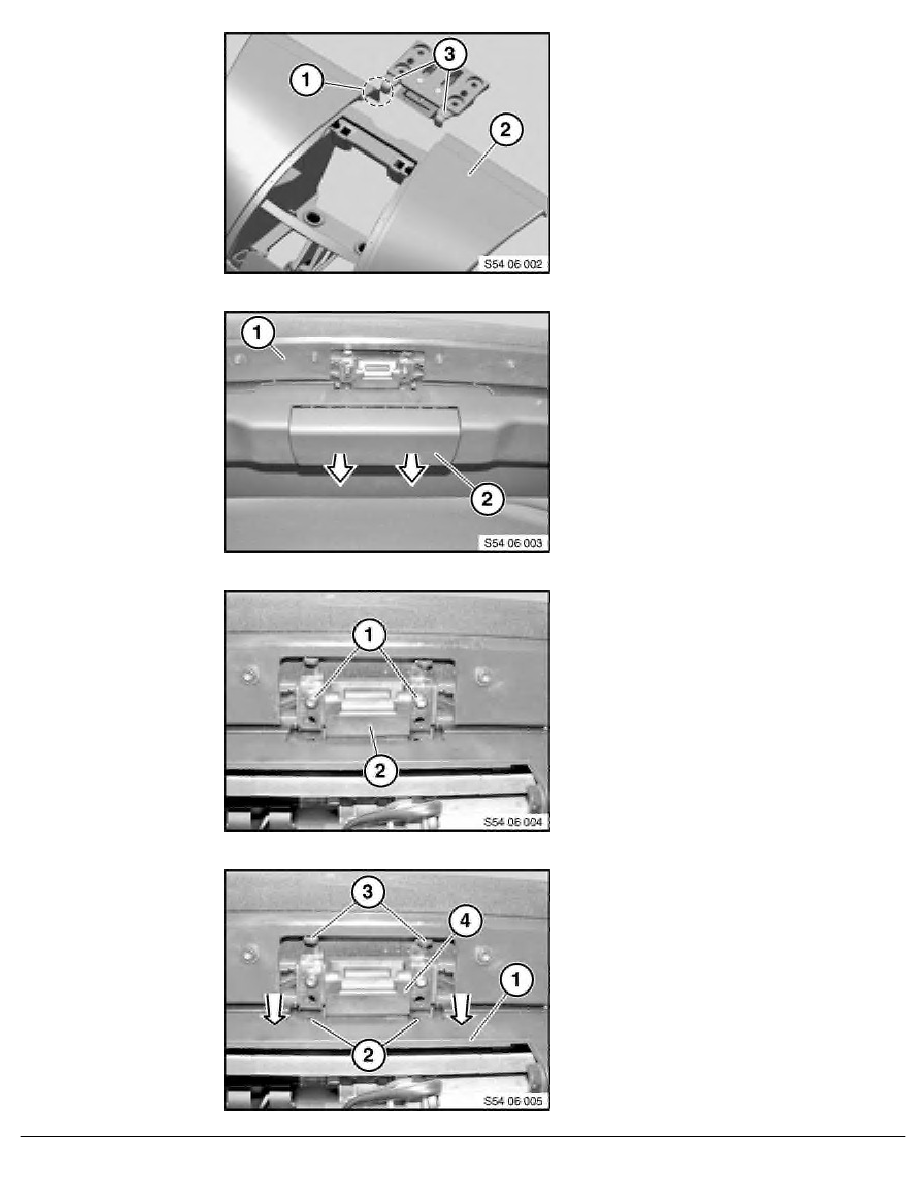

Note:
The new concept allows the
convertible top to "swing".
For this reason, to avoid a
collision (1) with the stowage
box (2), the
X hooks (3) must be removed
from the stowage compartment
lock (wedge block).
Unclip panel (2) on the convertible
top (1).
Unscrew bolts (1) on wedge
block (2).
Press the trim (1) in slightly and
unscrew the covered bolts (2) on the
wedge block (4)
Remove the two X hooks (3).
Secure the wedge block (4) without
the X hooks (3) using the bolts that
were unscrewed above.
