Z Series E85 Z4 2.0i (N46) ROADST
22 11 001

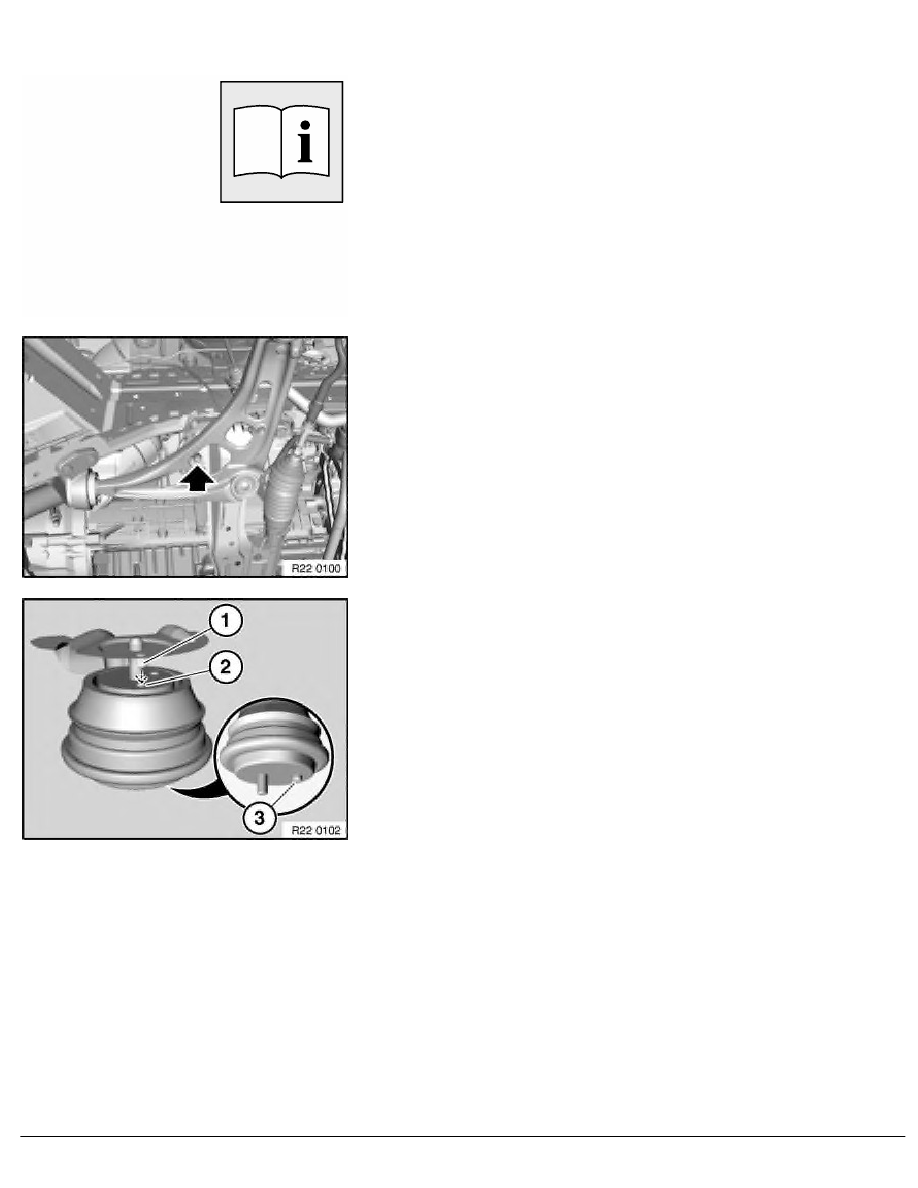

Replacing right engine mount (N46)
Necessary preliminary tasks:
•
Secure engine in installation position
•
Release engine mounts on left and right from above
•
Remove reinforcement plate
•
Remove underbody protection
Unfasten nut.
Tightening torque 22 11 1AZ
.
Installation:
Fit heat shield for engine mount.
Lug (1) of heat shield must rest in corresponding bore (2) of
engine mount.
Installation position of engine mount predetermined by locating pin
(3). Pin (3) is in direction of travel at front.
RA Replacing right engine mount (N46)
