Z Series E86 Z4 3.0Si (N52) COUPE

51 21 170
Removing and installing or replacing outside
handle from left or right front door
Special tools required:
•
51 3 252
•
51 3 260

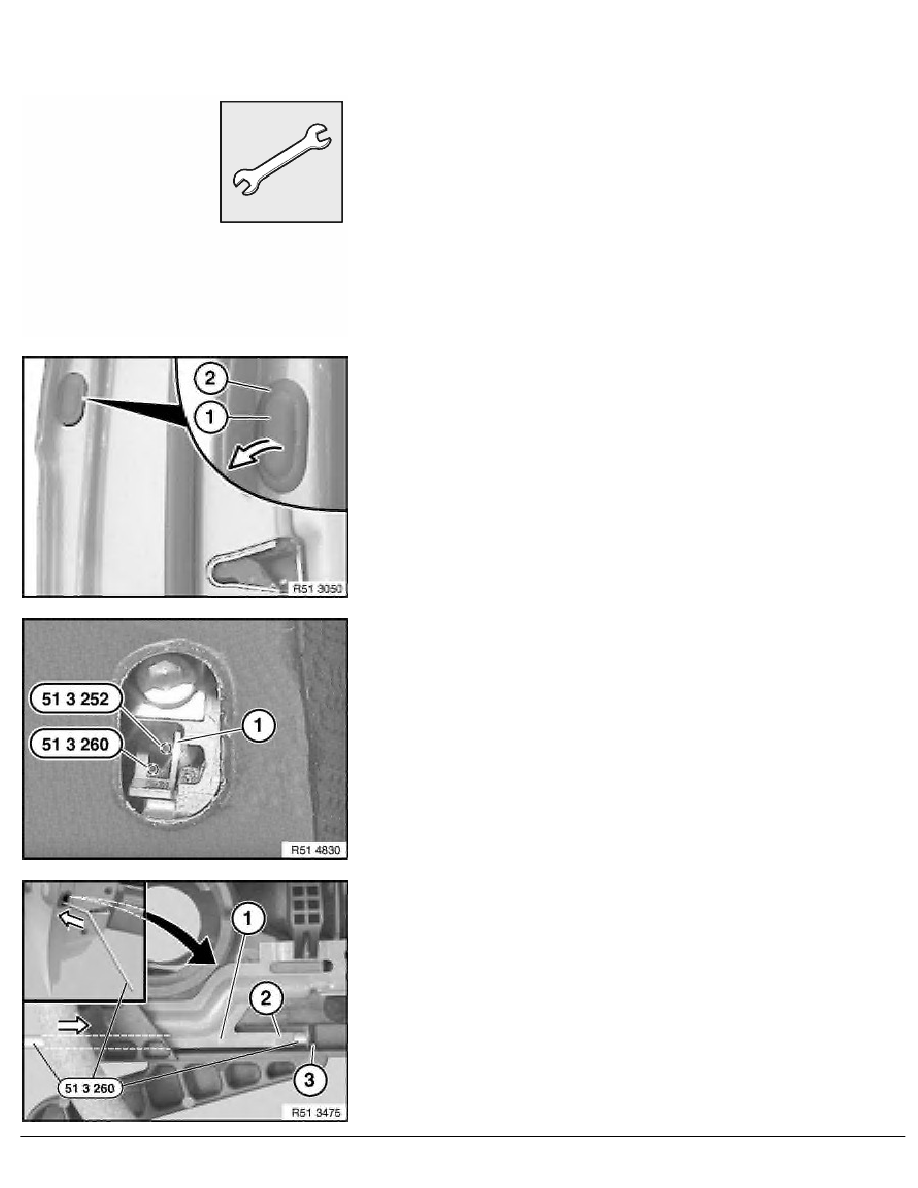

Lever out plug (1).
Note:
Outer ring (2) remains on front door.
Engage special tool 51 3 252 at marked point in bore of locking
plate (1).
Insert special tool 51 3 260 at marked point as far as it will go.
Note:
Retaining tab (2) of locking plate (1) is raised with special tool
51 3 260 over retaining rib (3).
