LeSabre Estate Wagon V8-307 5.0L (1983)
Manifold Pressure/Vacuum Sensor: Testing and Inspection
Chart C-1D MAP and BARO Output Check

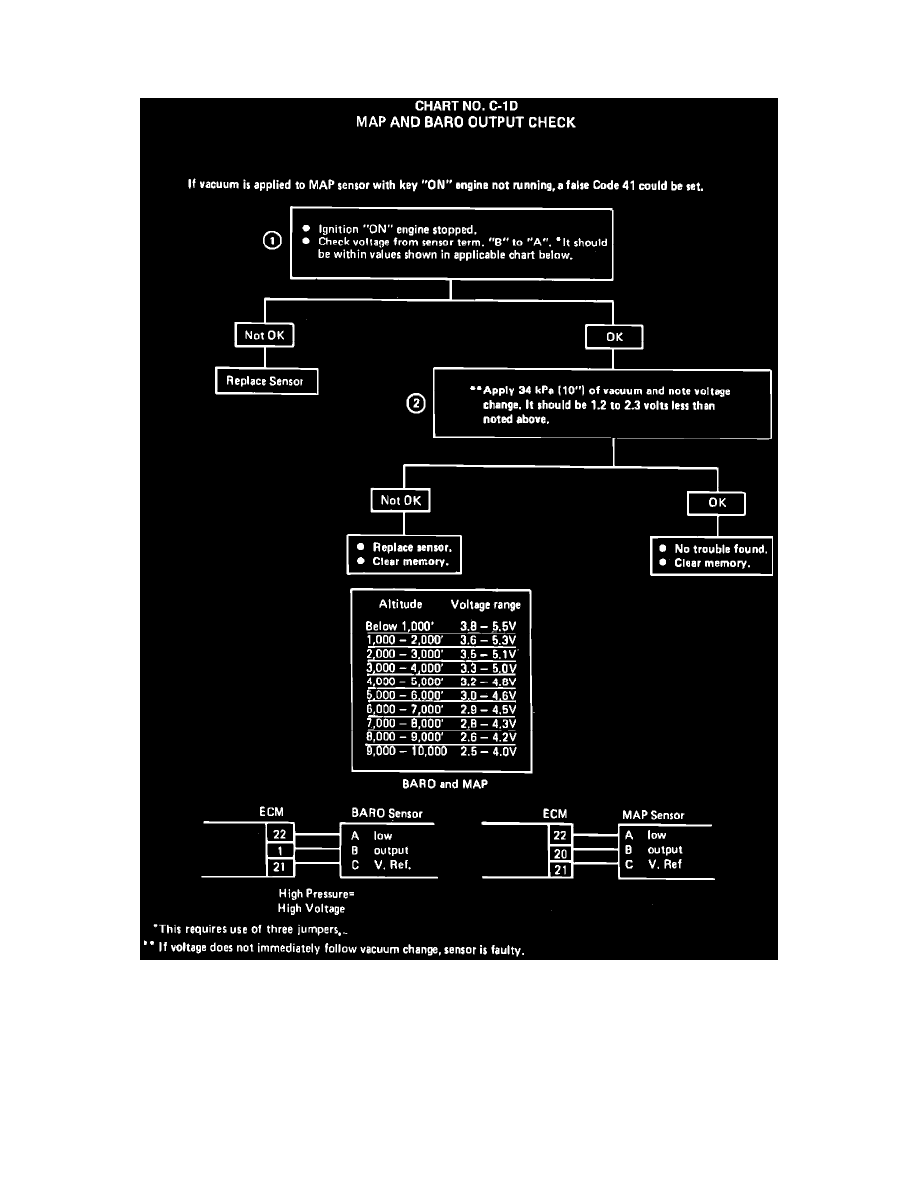

Fig. 008 - Chart C-1D Map and Baro Output Check
NOTE: MAP and BARO sensors are essentially the same device--one--MAP--measures the difference between pressure in the manifold and
atmospheric pressure, and the other--BARO--measures atmospheric pressure.
1. Check that sensor voltage is highest when manifold pressure is highest--output normally is in the middle range for specific altitudes.
-
Low voltage increases spark advance.
-
High voltage decreases spark advance.
2. Check to see if the rate of change of the output VS change in pressure is correct--normal change would be about the middle of the range listed.
-
The voltage should change as soon as the vacuum is changed.
