Lucerne V8-4.6L (2008)
Negative: Service and Repair
Battery Negative Cable Replacement
Removal Procedure
Important:
*
Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
*
Always route the replacement cable the same way as the original cable.
1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (See: Service and Repair).

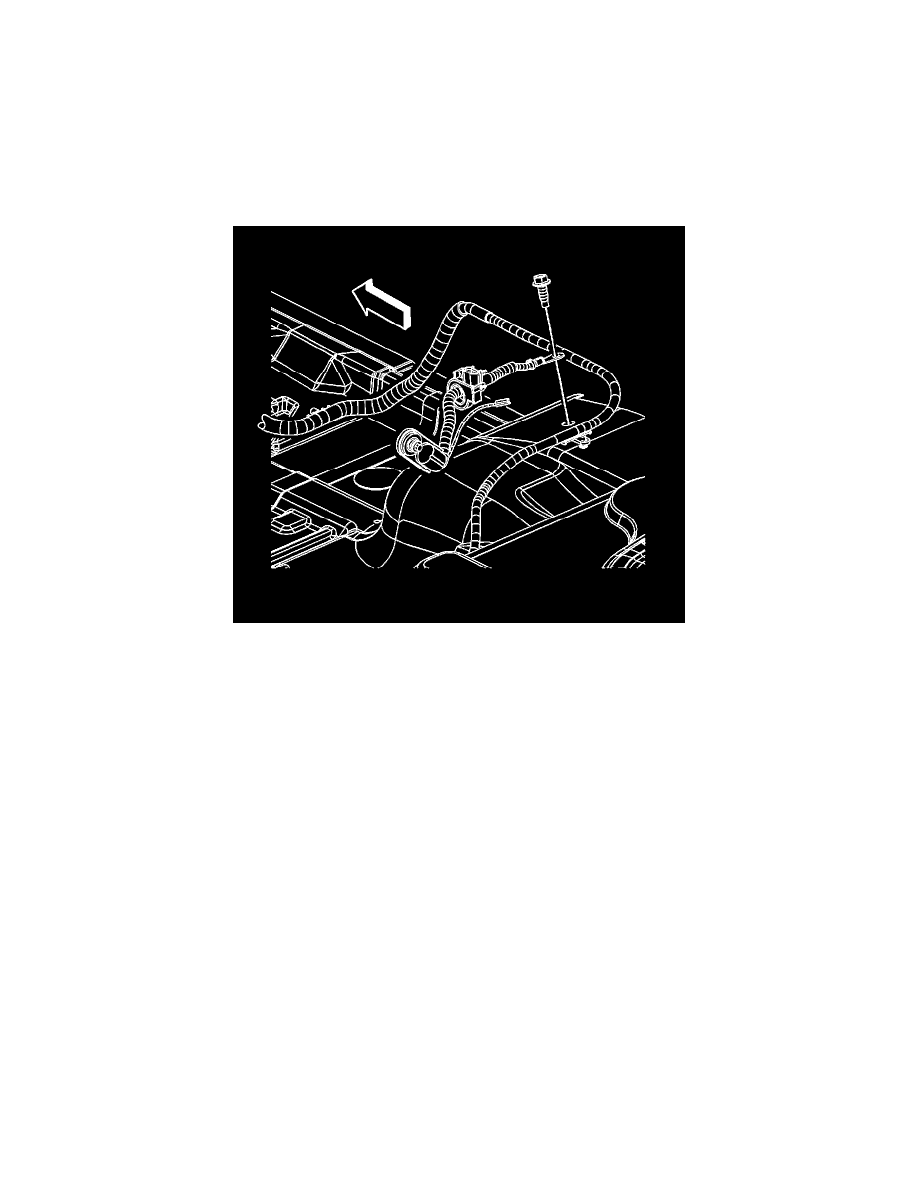

2. Disconnect the body harness electrical connector from the negative battery cable electrical connector.
3. Disconnect the body harness electrical connector from the battery current sensor.
4. Remove the negative battery cable ground bolt.
5. Remove the negative battery cable.
Installation Procedure
Important: When installing the negative battery cable, ensure that the cable eyelet is installed with the flat side down. Keep the crimped side
facing upward.
