Regal L4-2.0L Turbo (2011)

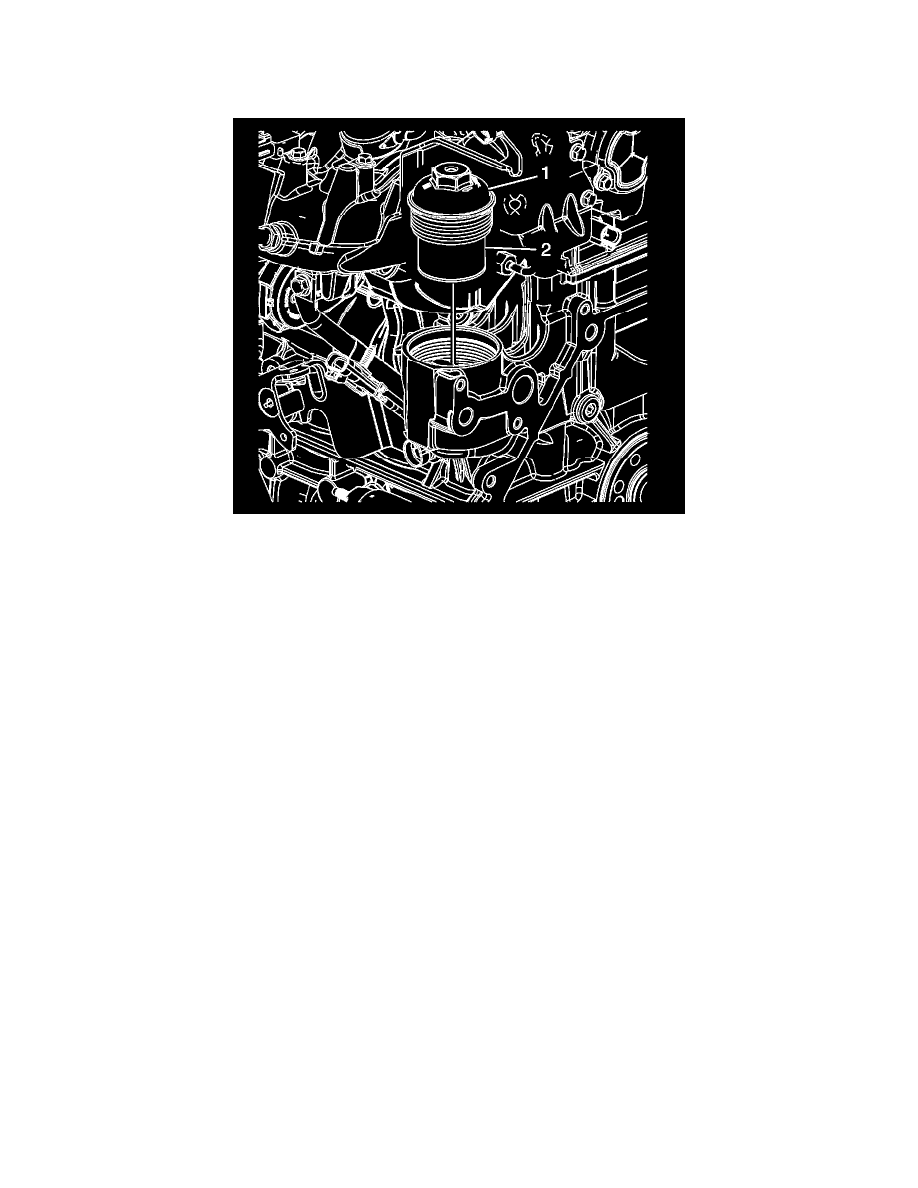

9. Remove the oil filter (2) from the cap and discard.
10. Clean the oil filter housing in the engine block.
Installation Procedure
1. Install a new oil filter (2) on the oil filter cap (1).
2. Lubricate the oil filter cap O-ring with engine oil.
Caution: Over torquing the oil filter cap may cause damage to the oil filter cap resulting in an oil leak.
Note: DO NOT use an open end wrench on the hex on top of the oil filter cap.
3. Use the EN-44887 - wrench to install the oil filter and cap. Tighten the oil filter cap until fully seated. DO NOT exceed 22 Nm (16 lb ft).
4. Fill the engine with oil. Refer to Fluid and Lubricant Recommendations (See: ).
5. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement (See: Engine, Cooling and Exhaust/Engine/Intake
Manifold/Service and Repair/Intake Manifold Cover Replacement).
