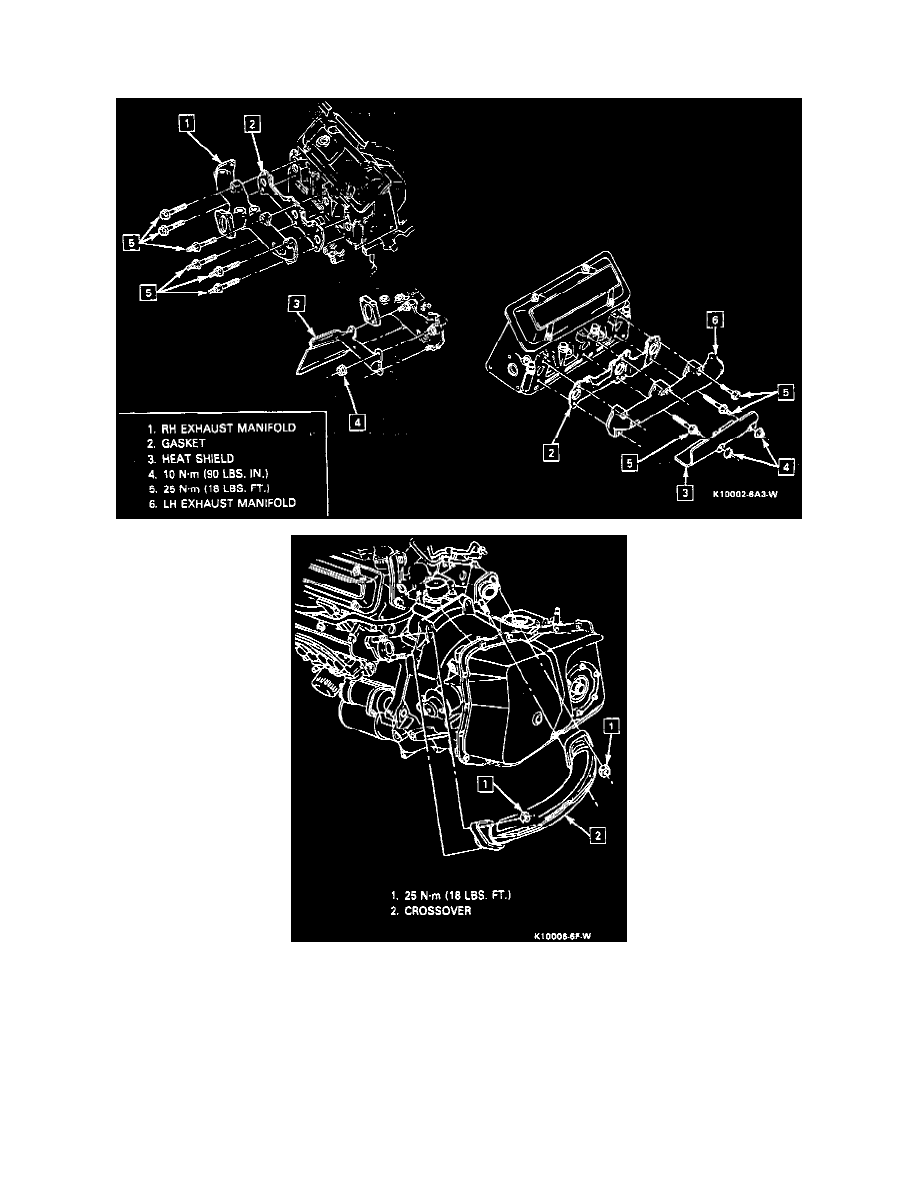

Exhaust Manifold: Service and Repair
Left Side (Front)

REMOVE OR DISCONNECT

1.  Negative battery cable.
2.  Coolant recovery bottle.
3.  Serpentine belt cover and belt.
4.  A/C compressor.
5.  Right side torque strut.
6.  A/C and torque strut mounting bracket.
7.  Heat shield.
8.  Exhaust crossover pipe at manifold.
9.  Exhaust manifold bolts.

10.  Exhaust manifold from head.
