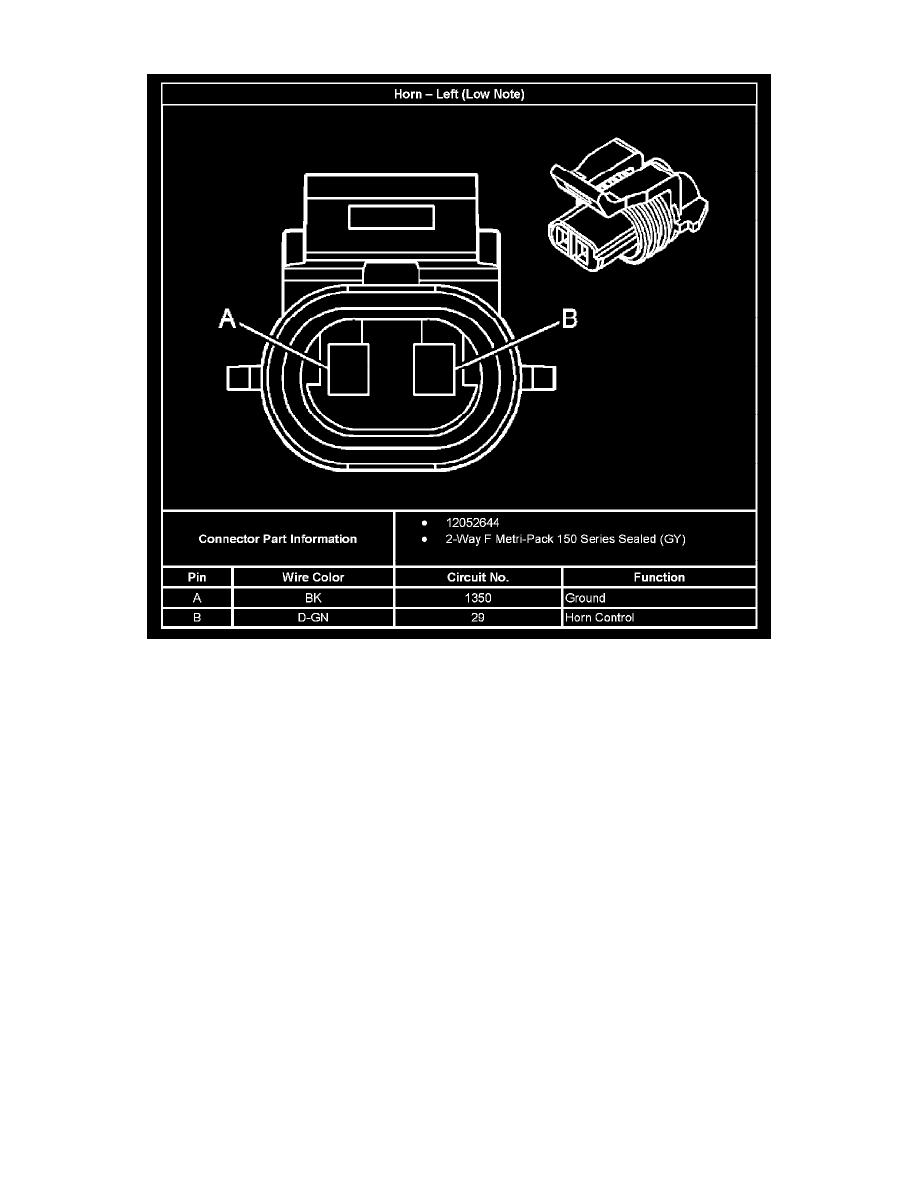

Horn: Connector Views

Horn - Left (Low Note)

Lighting and Horns
Horn / Component Information
Diagrams / Diagnostic Aids
