Rendezvous AWD V6-3.6L VIN 7 (2004)
Brake Pedal Assy: Service and Repair
Brake Pedal Assembly Replacement
Removal Procedure
1. Disable the SIR system.
2. Remove the left side insulator panel.

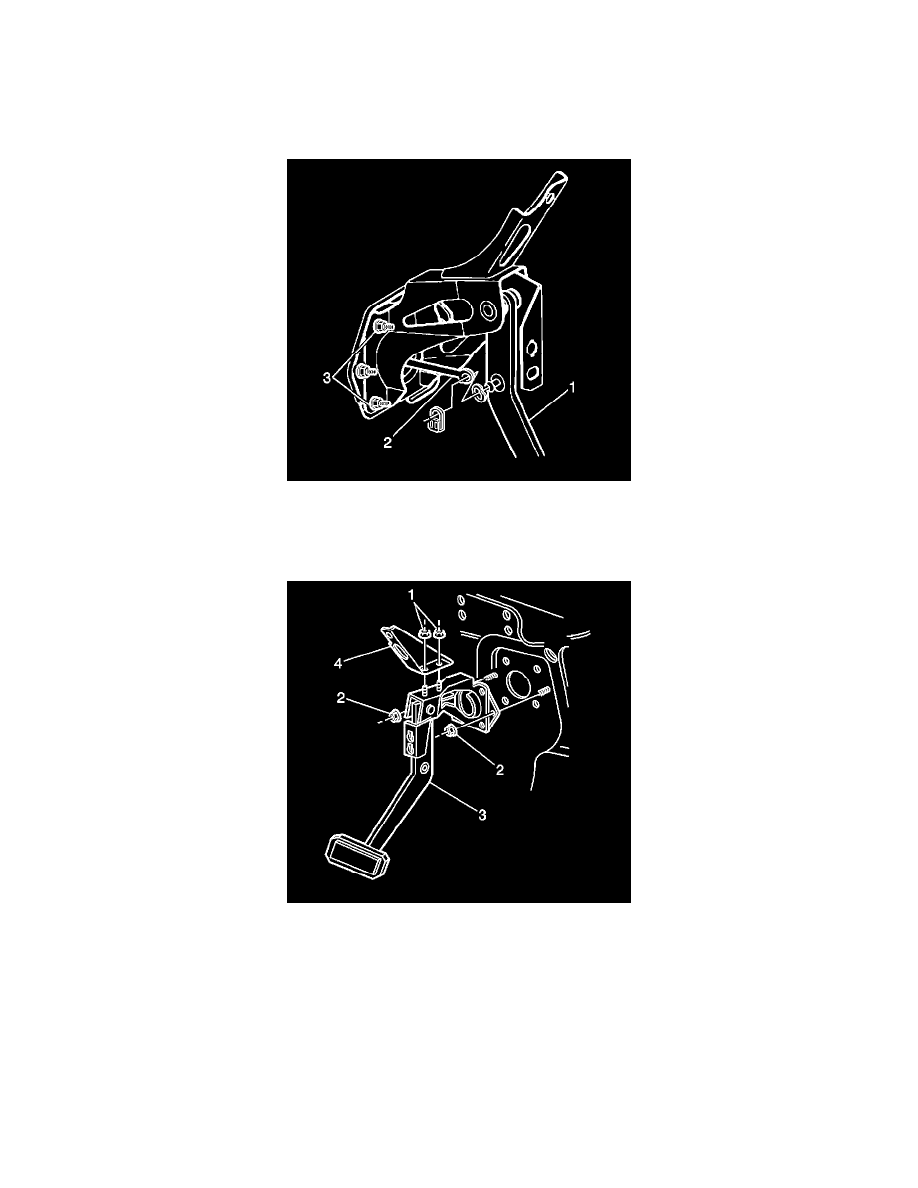

3. Remove the booster push rod (2) from the brake pedal (1).
4. Disconnect the electrical connectors from the cruise control release if equipped and stop lamp switch.
5. Remove the knee bolster.
6. Remove the brake booster mounting nuts (3).
7. Remove the brake pedal bracket mounting nuts (2).
8. Remove the upper mounting nuts (1) from the brake pedal brace (4).
9. Remove the brake pedal with the bracket (3).
10. Remove the brake pedal brace (4) from the bracket.
