Rendezvous AWD V6-3.6L VIN 7 (2004)
Air Dryer: Service and Repair
Automatic Level Control Air Dryer Replacement

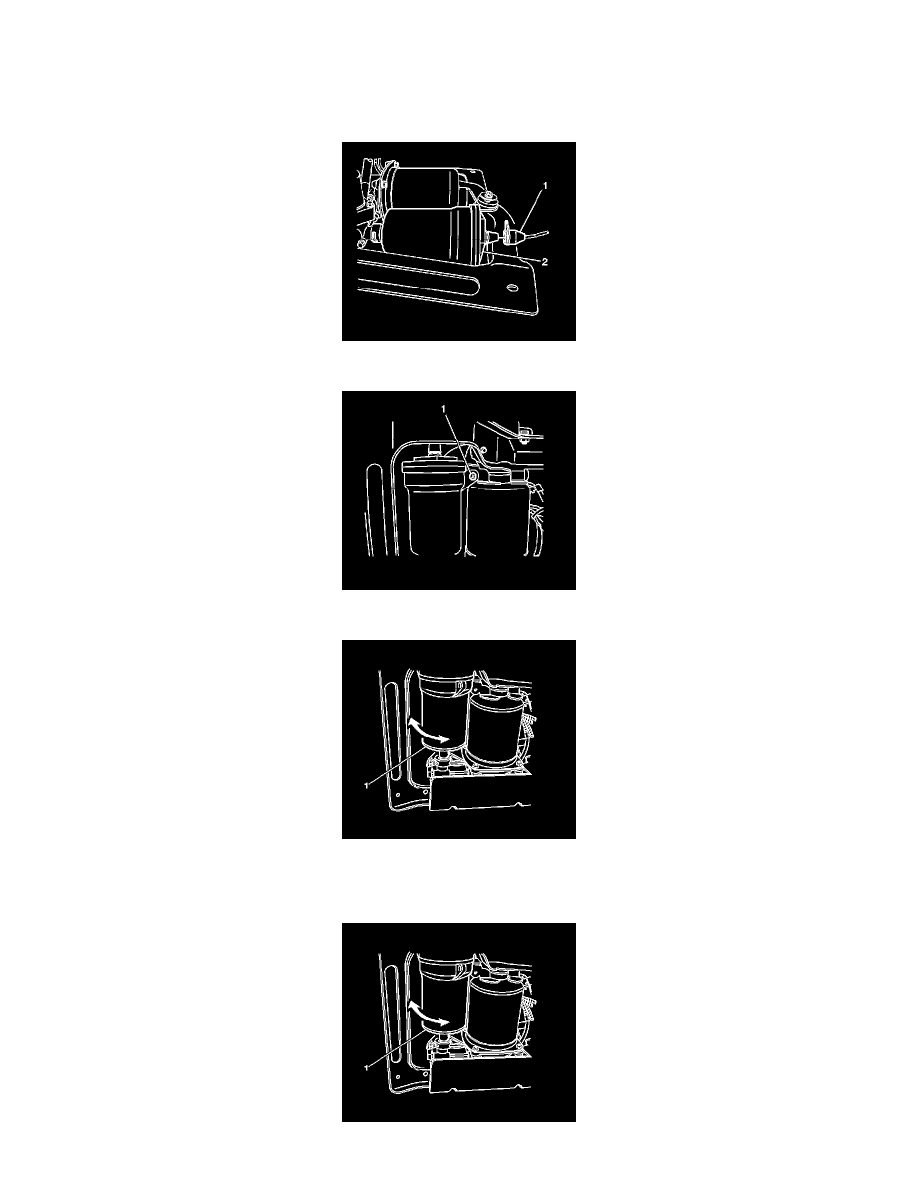

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the hose (1) from the air dryer (2).
3. Remove the mounting screw (1).
4. Rotate the air dryer (1) to remove from compressor.
Installation Procedure
