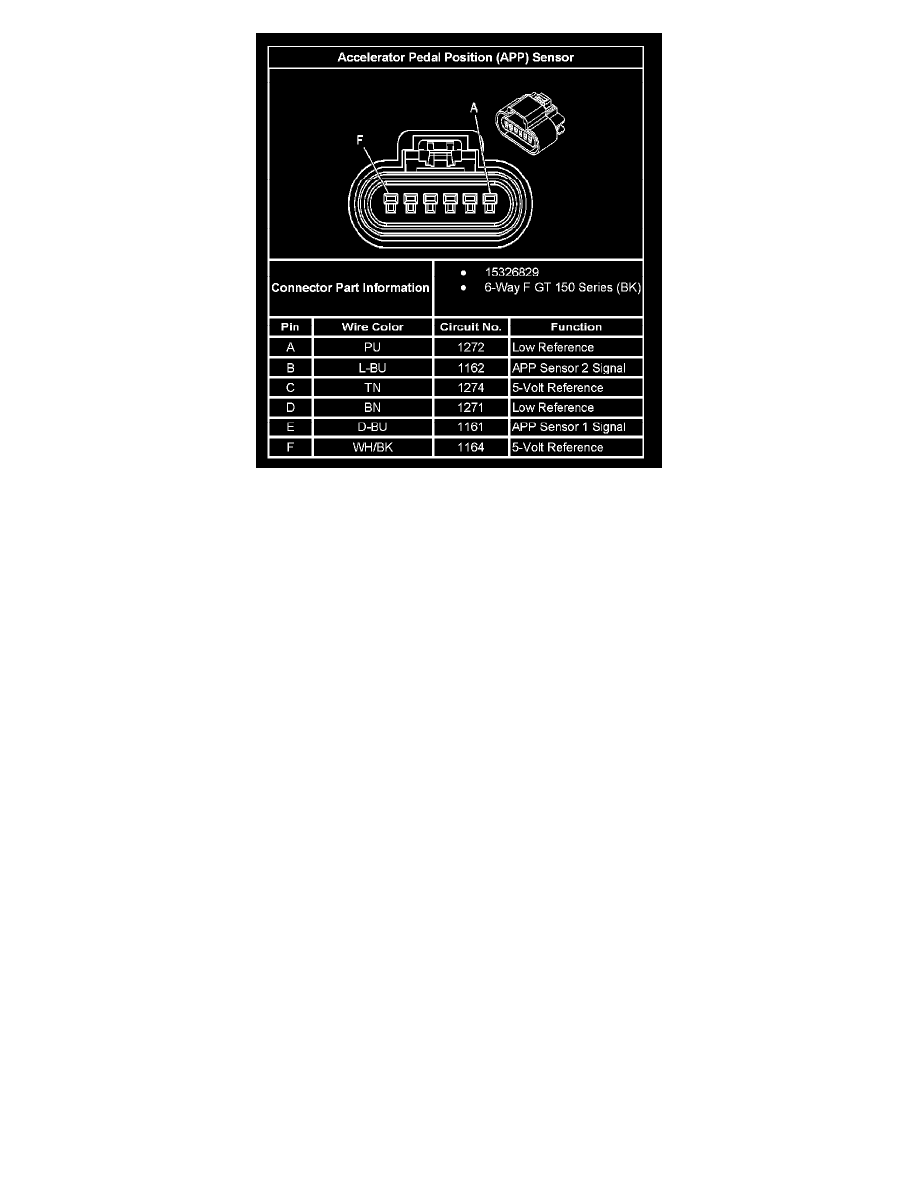

Accelerator Pedal Position (APP) Sensor

Powertrain Management
Computers and Control Systems
Accelerator Pedal Position Sensor
Component Information
Diagrams
