Rendezvous FWD V6-3.5L VIN L (2006)

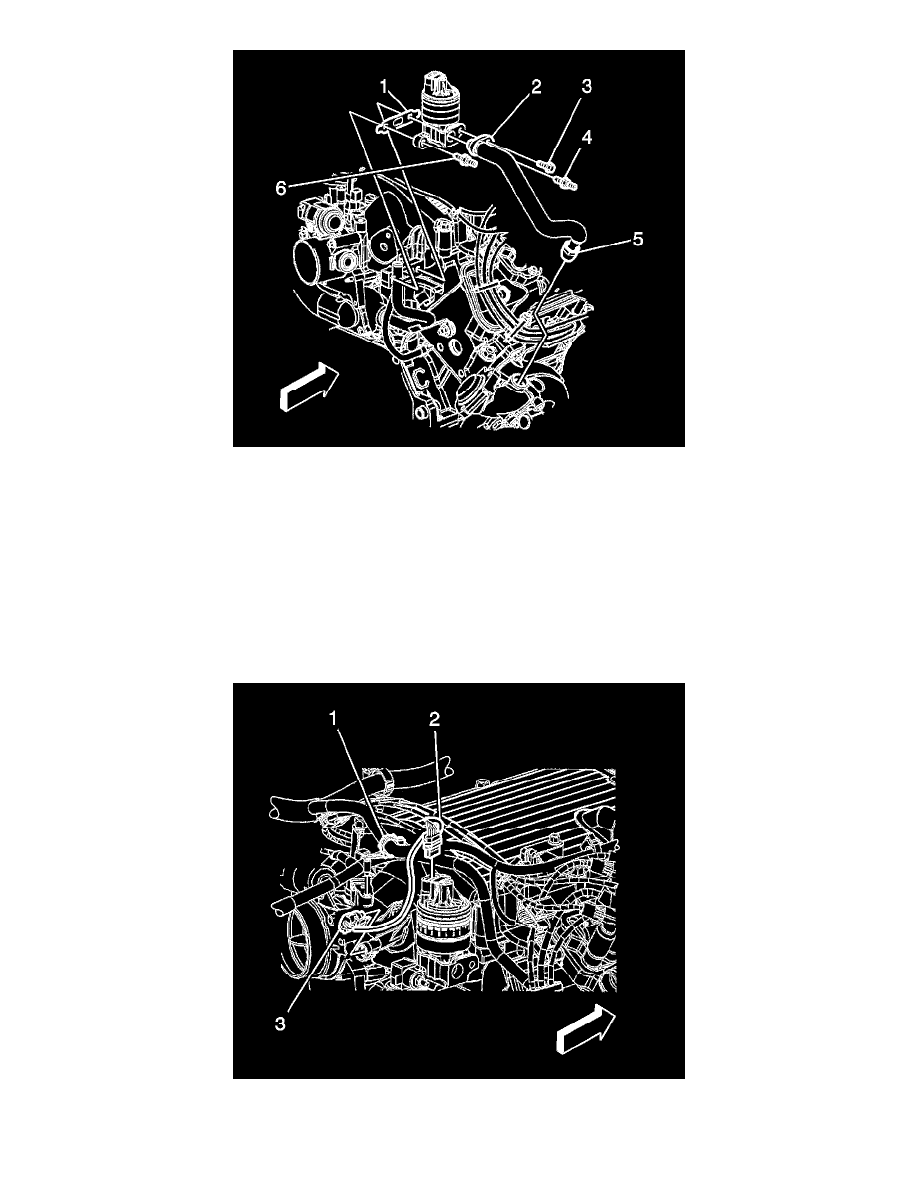

1. Install a new EGR valve gasket (1).
2. Install the EGR valve.
3. Install the EGR valve studs (4, 6).
NOTE: Refer to Fastener Notice.
Tighten the studs to 30 N.m (22 lb ft).
4. Install the EGR pipe (2) to the EGR valve.
5. Install the EGR pipe bolt (3).
Tighten the bolt to 25 N.m (18 lb ft).
6. Connect the engine harness electrical connector (2) to the EGR valve.
7. Install the intake manifold cover.
