Riviera V6-231 3.8L VIN C SFI (1989)

Page 1
background image

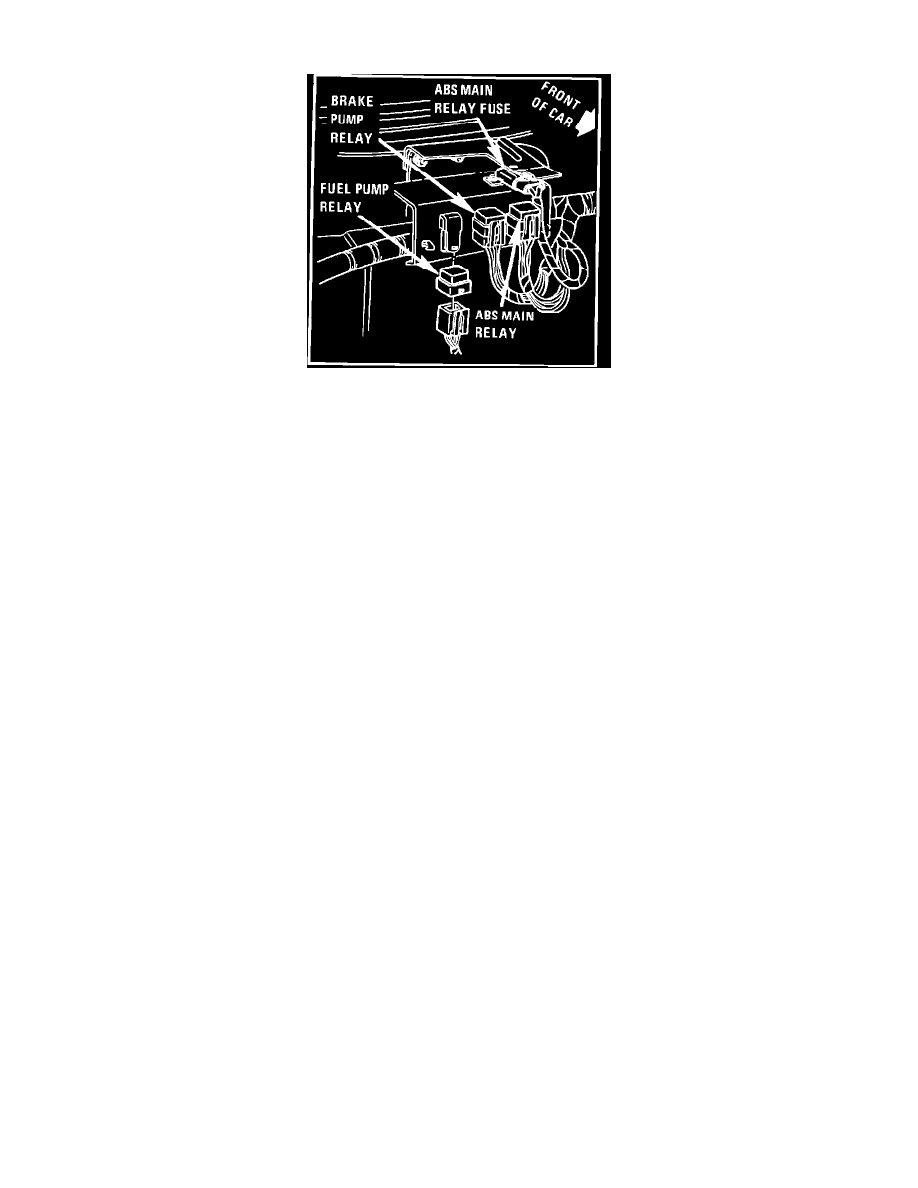

ABS Main Relay: Locations

Center Of Dash.

 Center Front Of Dash

Applicable to:  Reatta, Riviera, Toronado & Trofeo
