Riviera V6-231 3.8L VIN C SFI (1989)

Page 1
background image

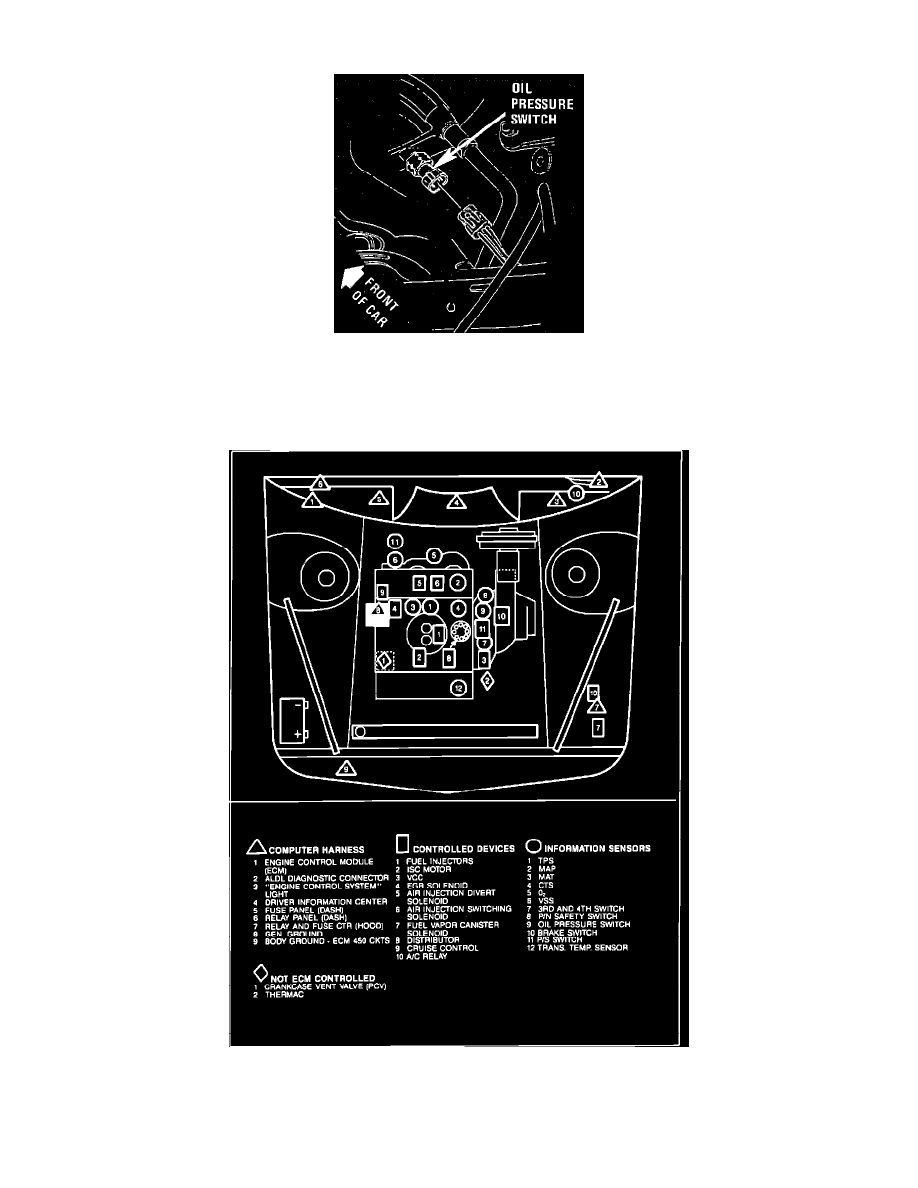

Oil Pressure Switch (For Fuel Pump): Locations

Rear LH Side Of Engine.

 LH Side Of Engine, Above Air Filter

Applicable to:  Eldorado & Seville

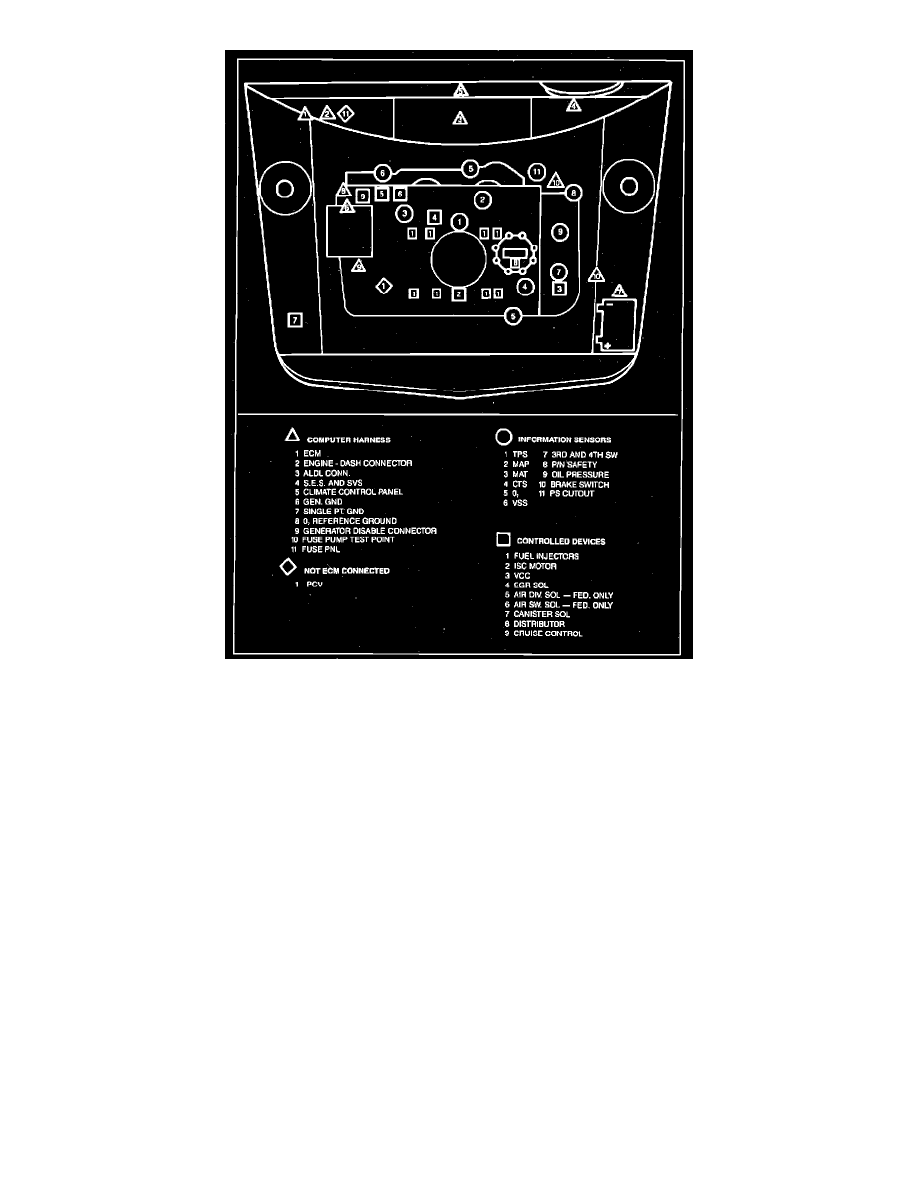

Engine Compartment Component Locations.

 LH Side Of Engine, Above Air Filter

Applicable to:  1989 Eldorado & Seville
