Buick Workshop Service and Repair Manuals > Riviera V6-231 3.8L VIN C SFI (1989) > Steering and Suspension | Steering | Steering Gear | Component Information | Service and Repair | Saginaw Rack & Pinion Power Steering Gear | Page 5334

Pinion & Valve Assembly|Page 5335 > < Pinion & Valve Assembly|Page 5333

Page 3

background image

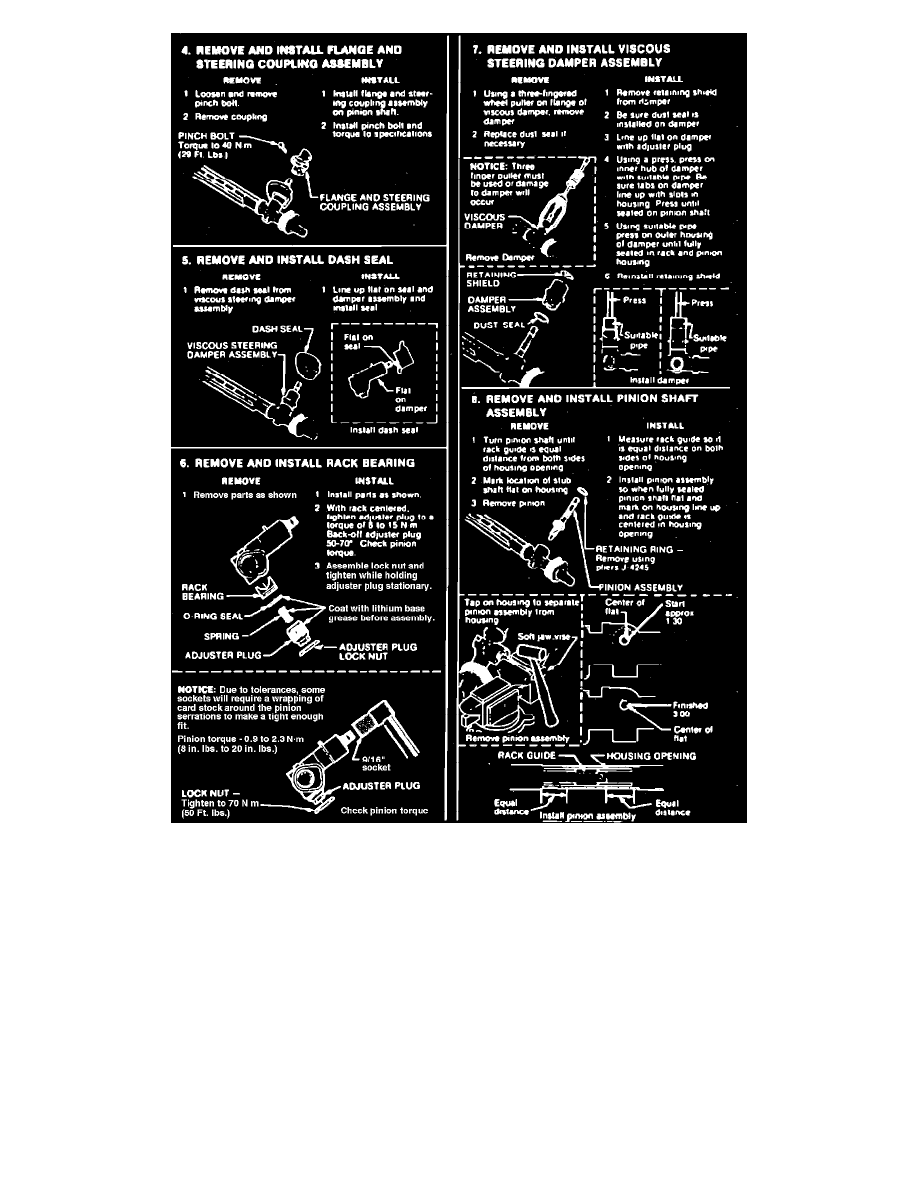

Fig. 2 Saginaw Rack & Pinion Steering Gear Service Procedures. (Part 2 Of 3)

Steering and Suspension
Steering
Steering Gear / Component Information
Service and Repair / Saginaw Rack & Pinion Power Steering Gear
Page 5334

Pinion & Valve Assembly|Page 5335 > < Pinion & Valve Assembly|Page 5333
