Skyhawk L4-121 2.0L VIN P TBI (1984)
CYLINDER & CASE ASSEMBLY
3.

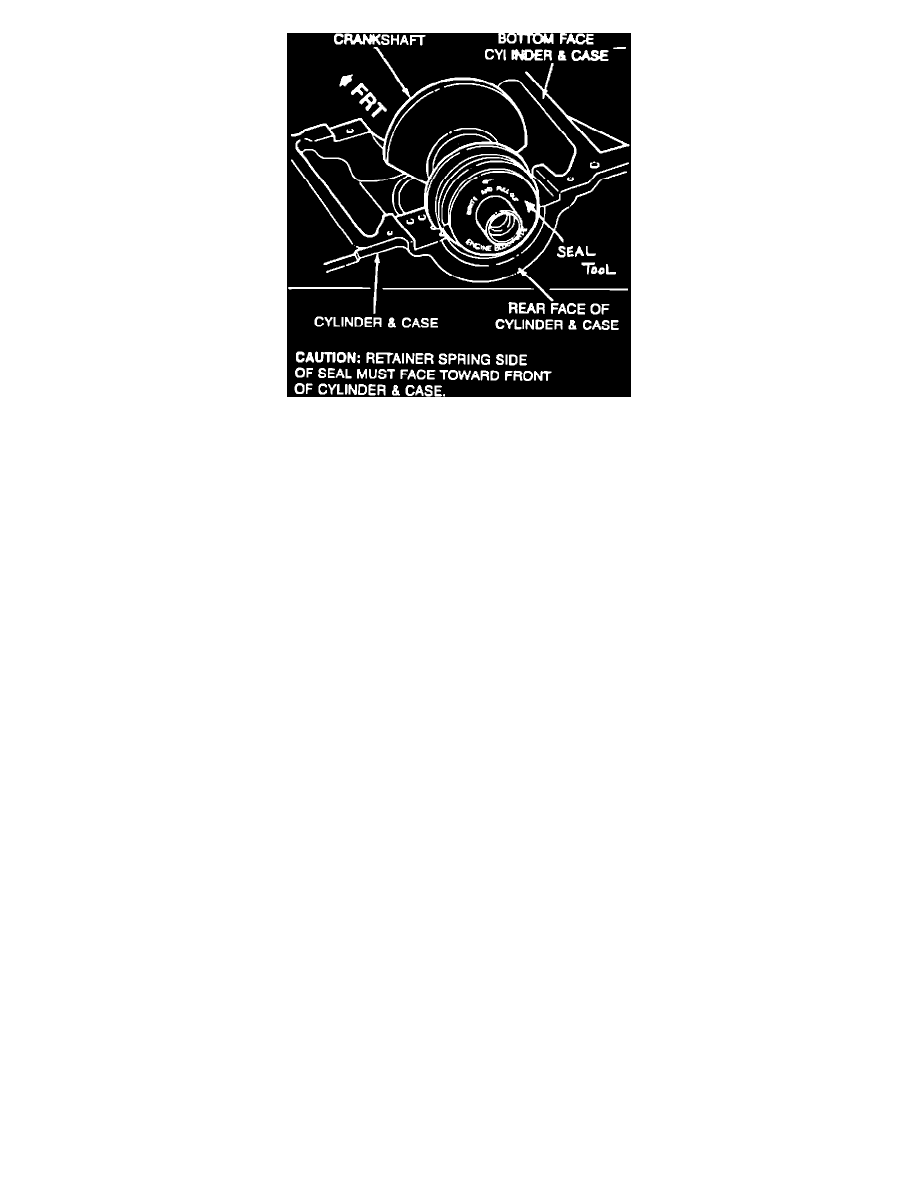

Position seal tool so that arrow points toward cylinder and case assembly (Fig. 1).
4.
Place crankshaft in engine with tool in place.
5.
Remove tool and discard.
6.
Put light coat of oil on crankshaft journals.
7.
Seal rear main bearing split-line surface and replace cap and main bearing. (Use sealant P/N 1052357 or equivalent).
8.
Replace balance of caps and main bearings. Tighten to 85-100 N-m (64-75 ft.lbs.) torque.
9.
Replace rod bearings and caps. Tighten to 46-54 N-m (34-50 ft.lbs.) torque.
10.
Install oil pump making sure mating surface is free of foreign material. Tighten to 35-47 N-m (26-35 ft.lbs.) torque.
11.
Align crank sprocket timing mark and install cam sprocket and timing chain. Tighten bolts to 90-115 N-m (66-85 ft. lbs.) torque.
12.
Clean, seal and install oil pan and front cover.
