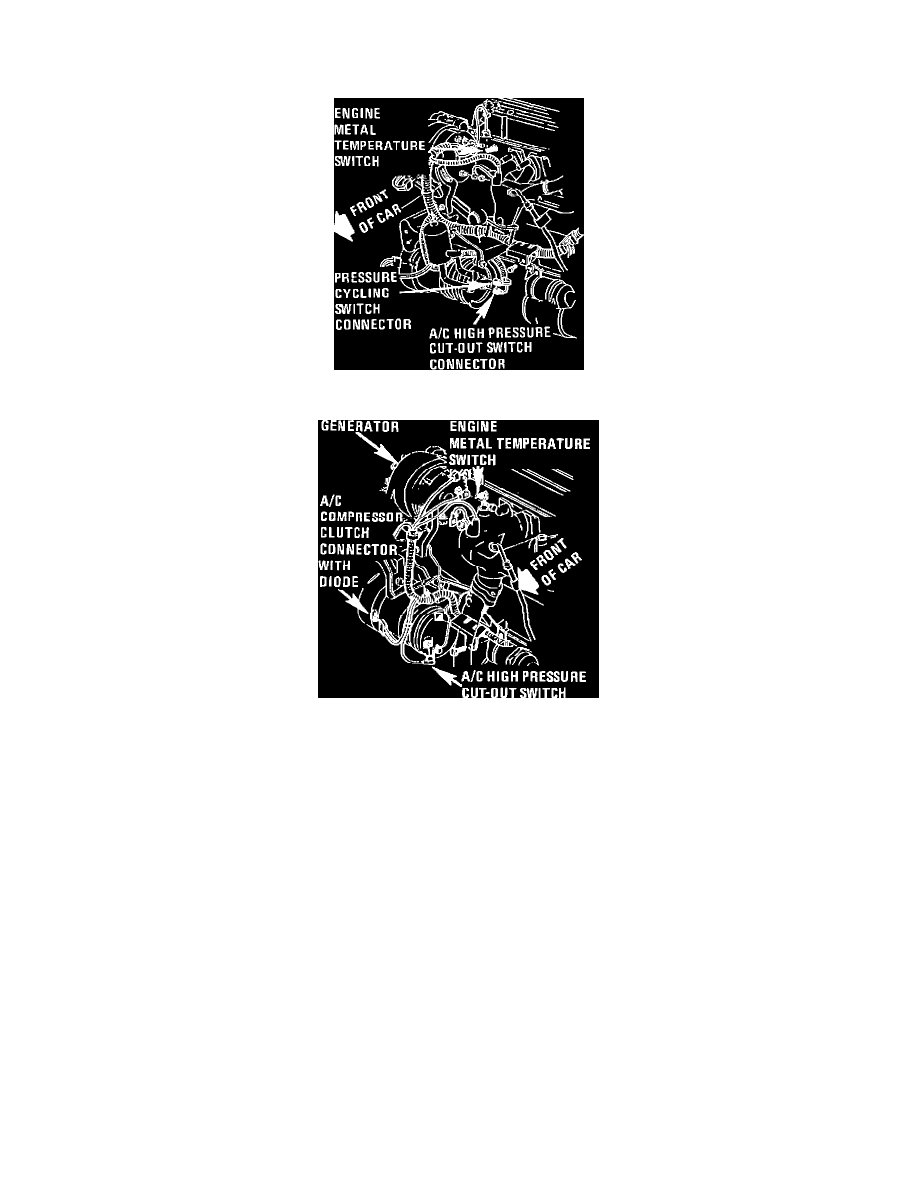

Refrigerant Pressure Sensor / Switch: Locations
A/C High Pressure Cut-Out Switch

LH Front Of Engine.

LH Side Of Engine.

 Lower LH Front Of Engine, On LH Side Of A/C Compressor

Applicable to:  1985 4-121/2.0L Engine
