Skylark L4-138 2.3L SOHC VIN 3 MFI QUAD 4 (1992)

Page 1
background image

Front Door Panel: Service and Repair
Map Pocket

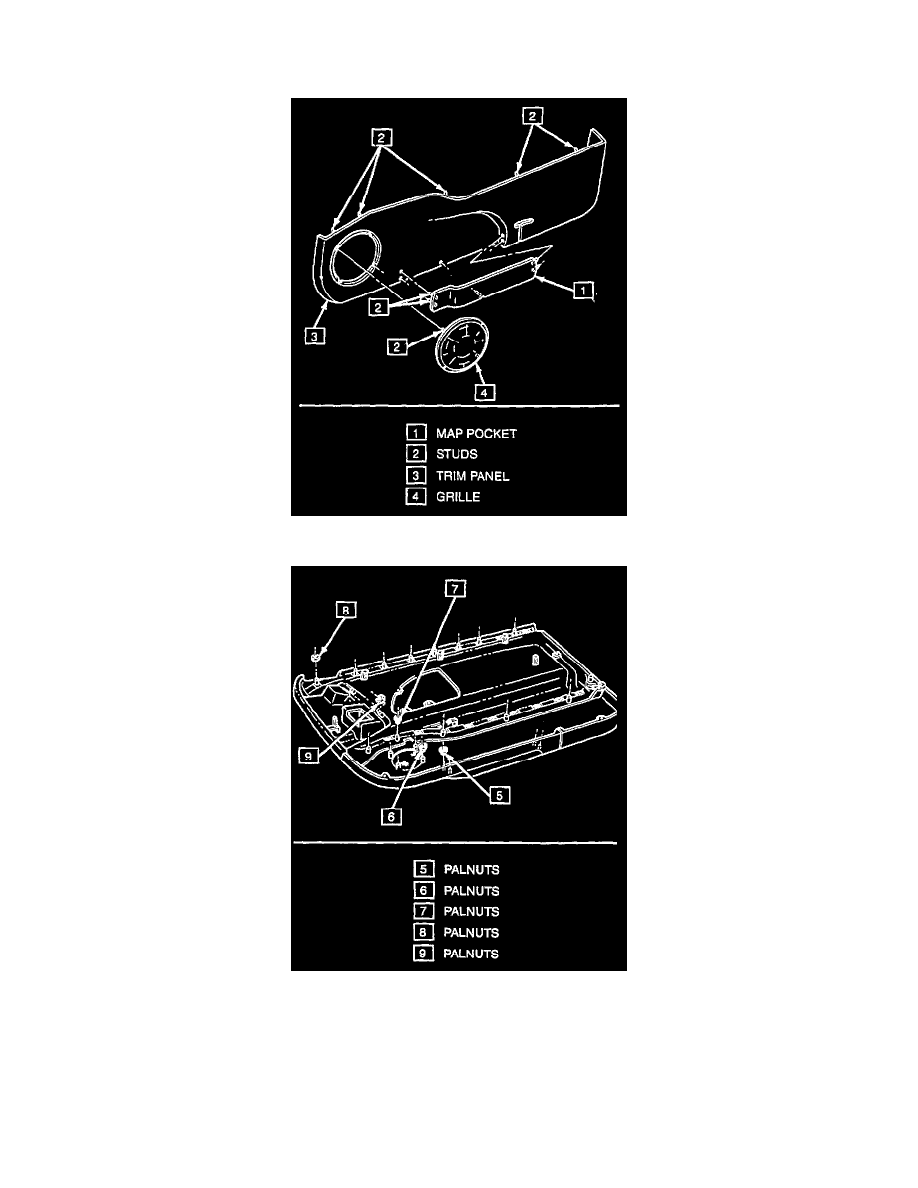

Map Pocket, Grille & Lower Door Trim Panel

Trim Panel Assembly

Remove or Disconnect

1. Door trim panel assembly (3).
2. Palnuts (5).
3. Map pocket (1) from trim panel assembly (3).

Install or Connect
