Skylark L4-138 2.3L SOHC VIN 3 MFI QUAD 4 (1992)
6.

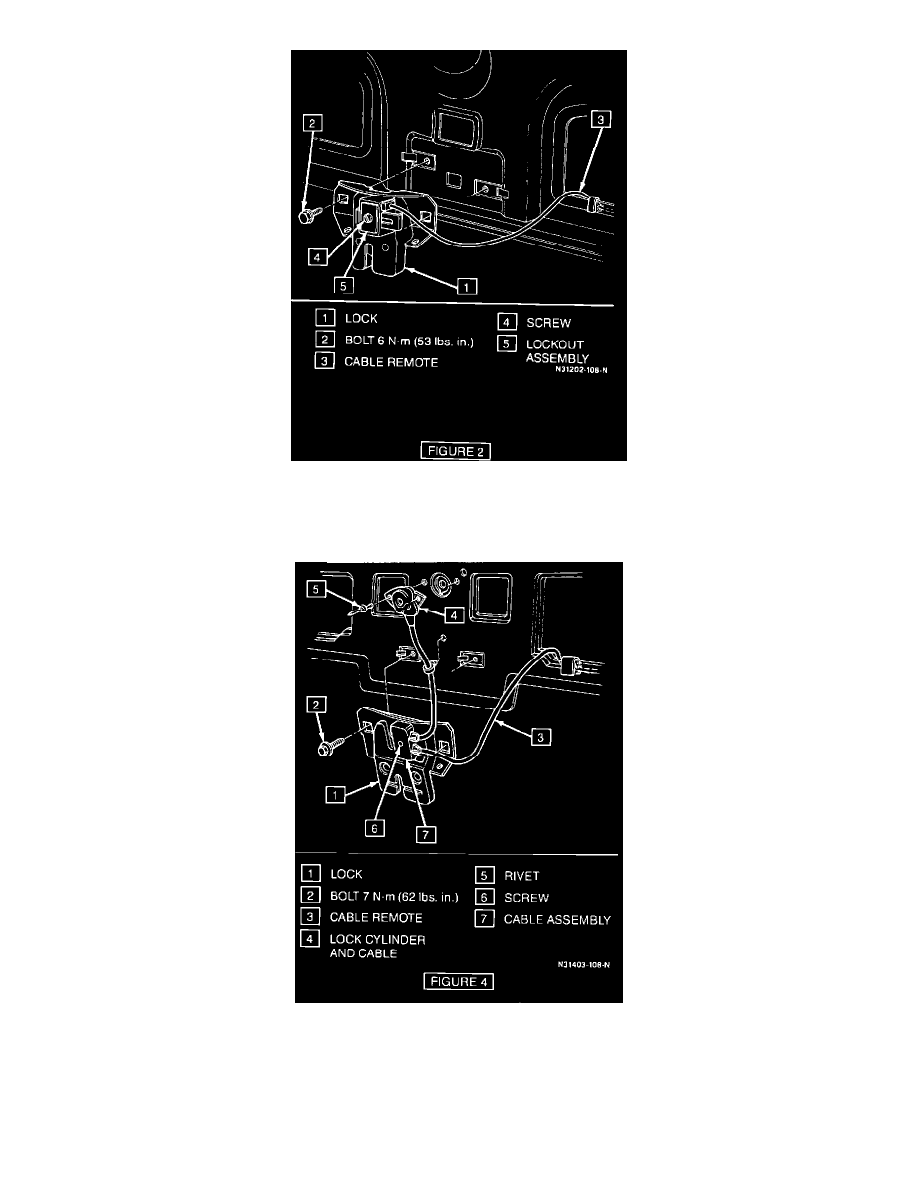

Lockout assembly from rear compartment lock (Figure 2)
7.
Pull cable out of rear compartment lid if cable was originally routed through lid.
7a.
Some release cables may be clipped to the outside of the inner deck
lid panel. Remove cable from clips.
8.
Drill out rivets (5) from remote key cylinder using a 1/8" drill bit (Figure 4).
Install or Connect
1.
Attach lockout assembly to lock assembly. Cable must be mounted externally.
