Skylark L4-138 2.3L SOHC VIN 3 MFI QUAD 4 (1992)
Compressor Clutch: Service and Repair
Clutch Rotor and/or Bearing
Remove or Disconnect
1. Remove the clutch plate and hub assembly as described previously.

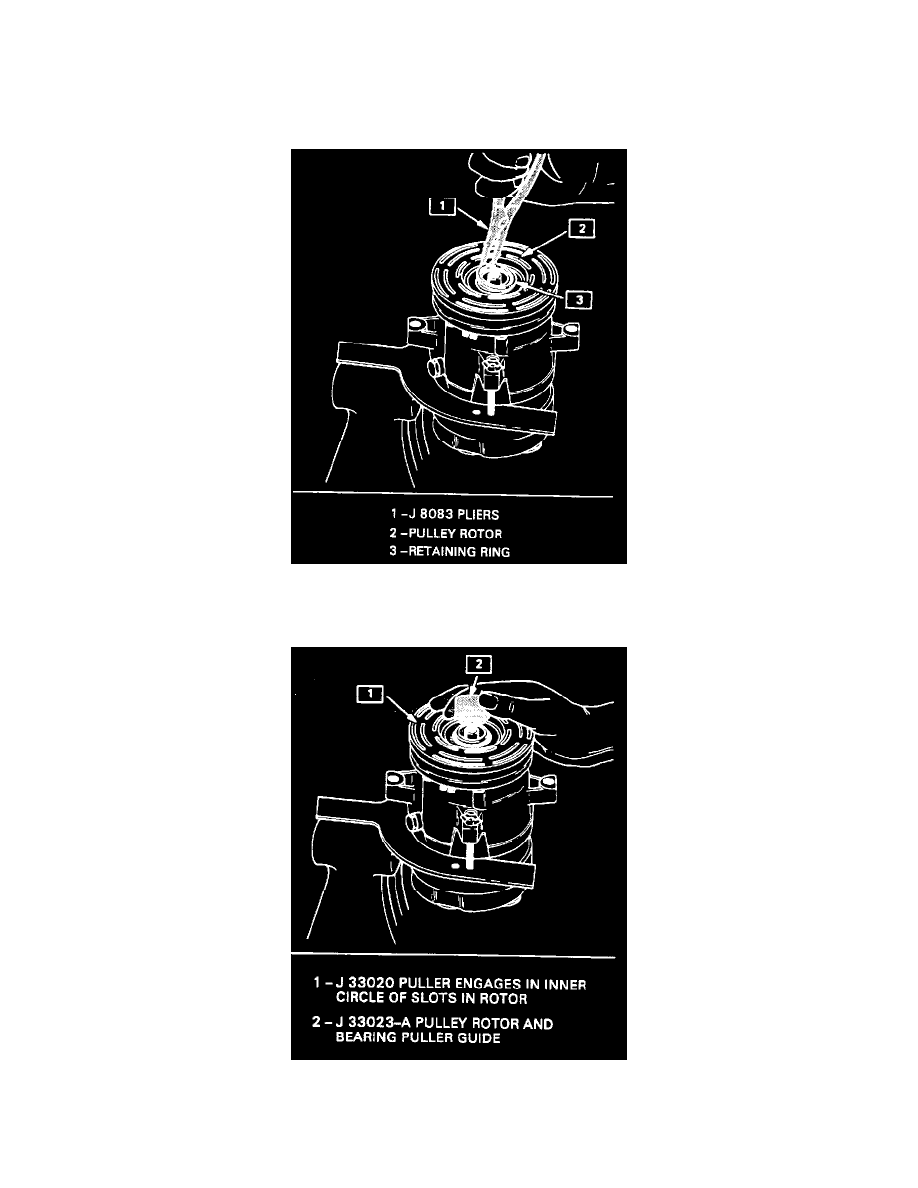

Removing Pulley Rotor & Bearing Assembly Retaining Ring
2. Remove rotor and bearing assembly retaining ring, using snap ring pliers J 6083.
Installing Pulley Rotor/Bearing Puller Guide
