Skylark L4-138 2.3L SOHC VIN 3 MFI QUAD 4 (1992)
Intake Air Temperature Sensor: Service and Repair

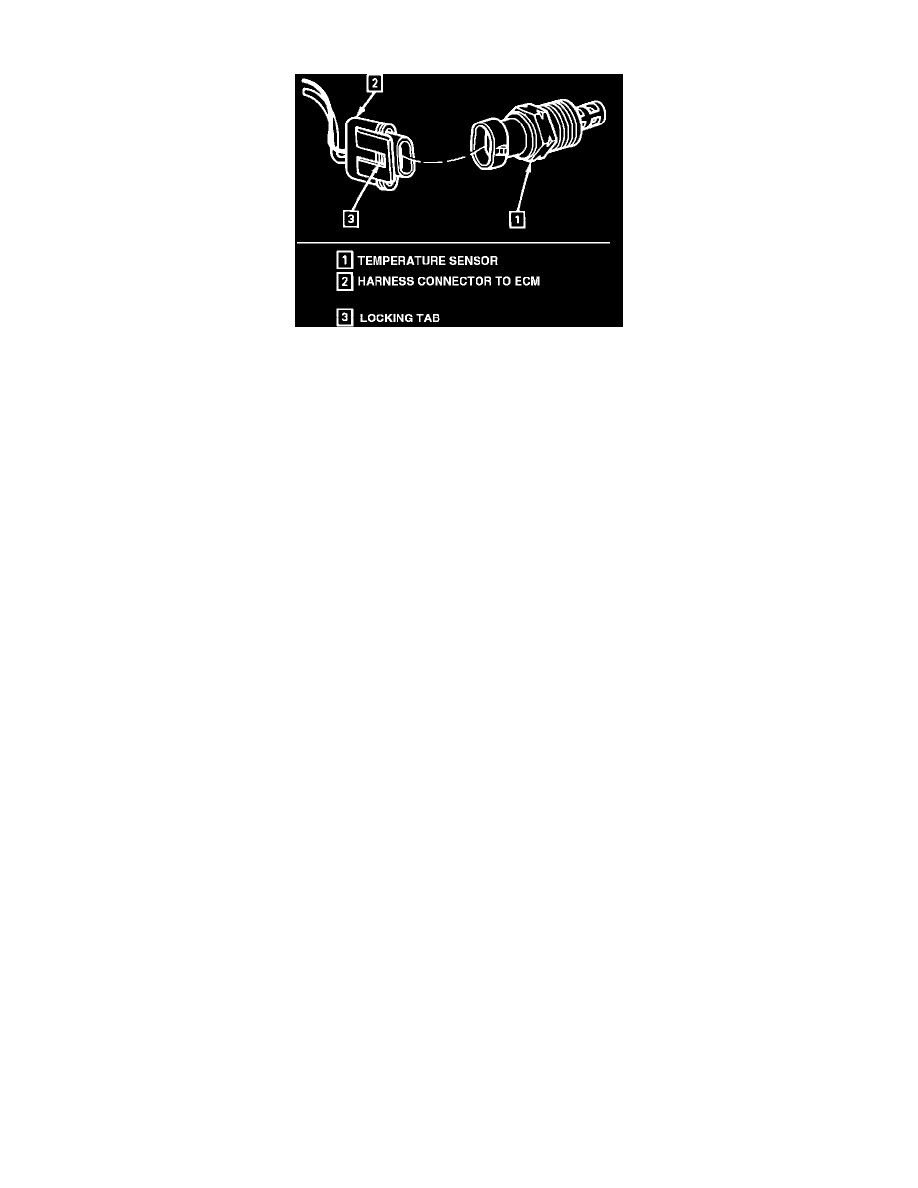

Intake Air Temperature Sensor
NOTE: The Intake Air Temperature (IAT) sensor is installed in the top of the intake manifold between runners 3 and 4. Care must be taken when
handling a IAT sensor to avoid damage.
REMOVAL
1.
Turn ignition to "OFF".
2.
Disconnect electrical connector.
3.
Carefully back out IAT sensor.
INSTALLATION
1.
Coat threads (only) with sealer.
2.
Install sensor in intake manifold, torque to 8 N-m (6 lb.ft.).
3.
Connect electrical connector.
