Skylark L4-138 2.3L SOHC VIN 3 MFI QUAD 4 (1992)
Steering Gear: Service and Repair
Boot or Rack Guide

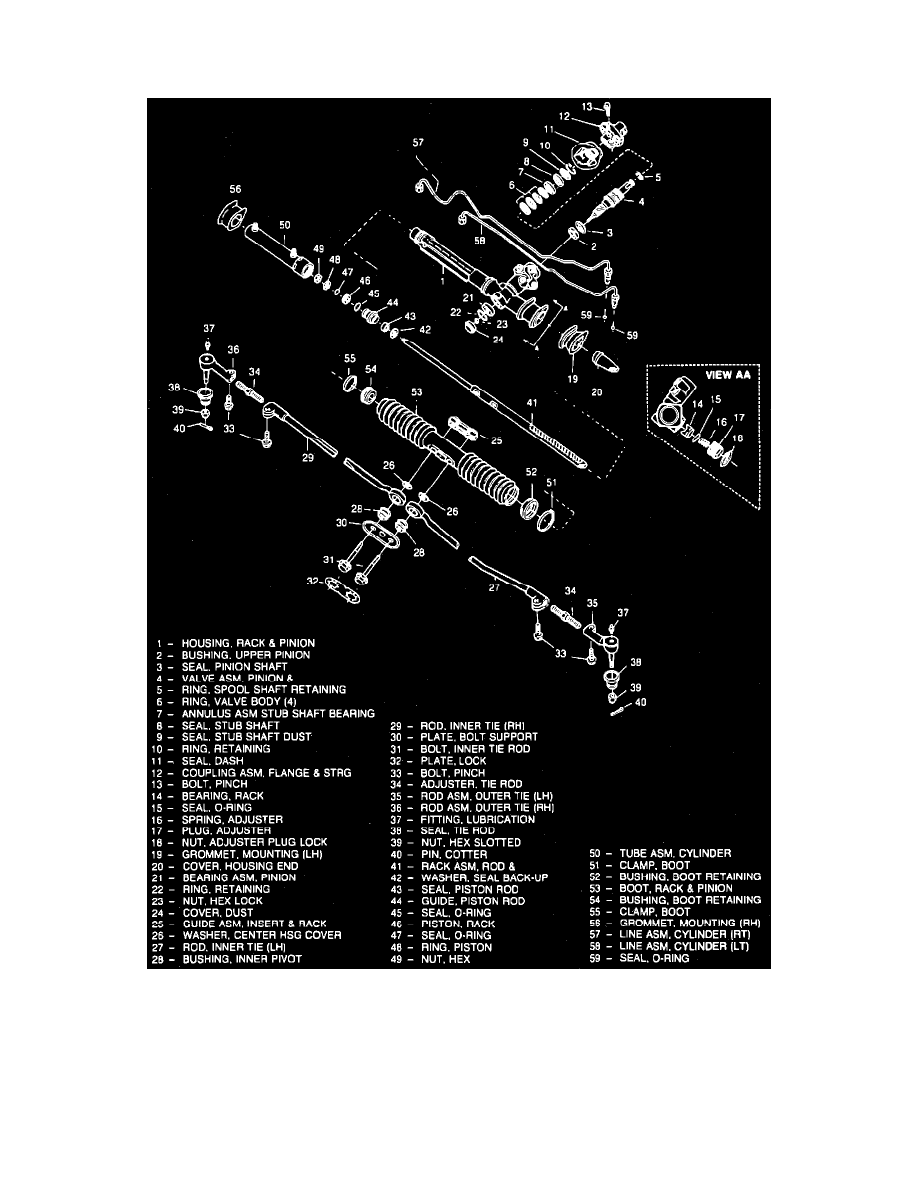

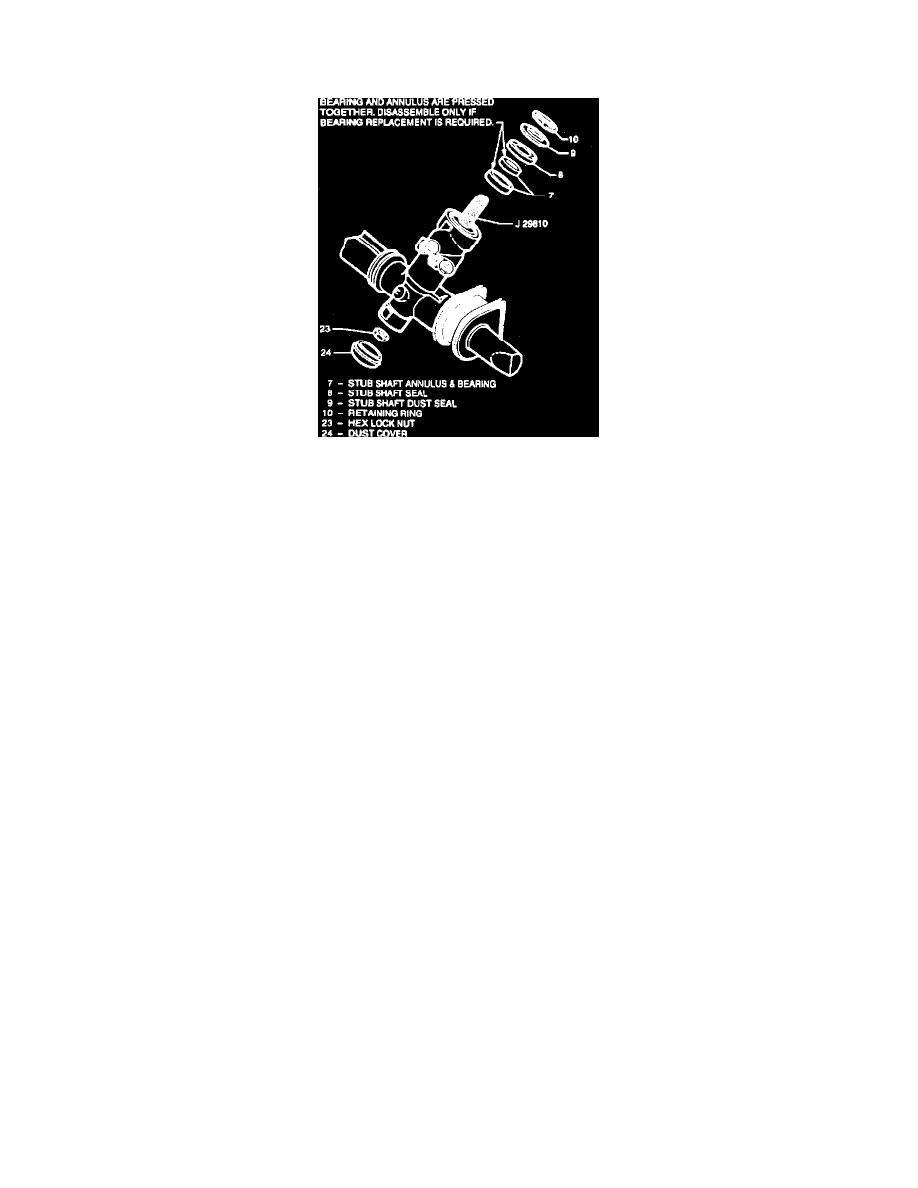

Fig. 11 Exploded View, Power Rack & Pinion Assembly. Front Wheel Fig. 11 Drive Beretta, Calais, Cavalier, Corsica, Grand Am, LeMans, Skyhawk, Skylark & Sunbird
1.
Cut off RH mounting grommet and boot clamps, Fig. 11.
2.
Slide boot retaining bushing bushing from rack and pinion boot.
3.
Slide boot assembly, consisting of rack and pinion boot, boot retaining bushing and center housing cover washers, captured in the rack and pinion
boot, from rack and pinion housing.
4.
Remove insert and rack guide assembly as necessary.
5.
Slide boot retaining bushing from rack and pinion boot.
6.
Slide new boot clamp onto rack and pinion boot.
