Skylark L4-138 2.3L SOHC VIN 3 MFI QUAD 4 (1992)
Steering Gear: Service and Repair
Upper Pinion Bushing and Pinion Shaft Seal

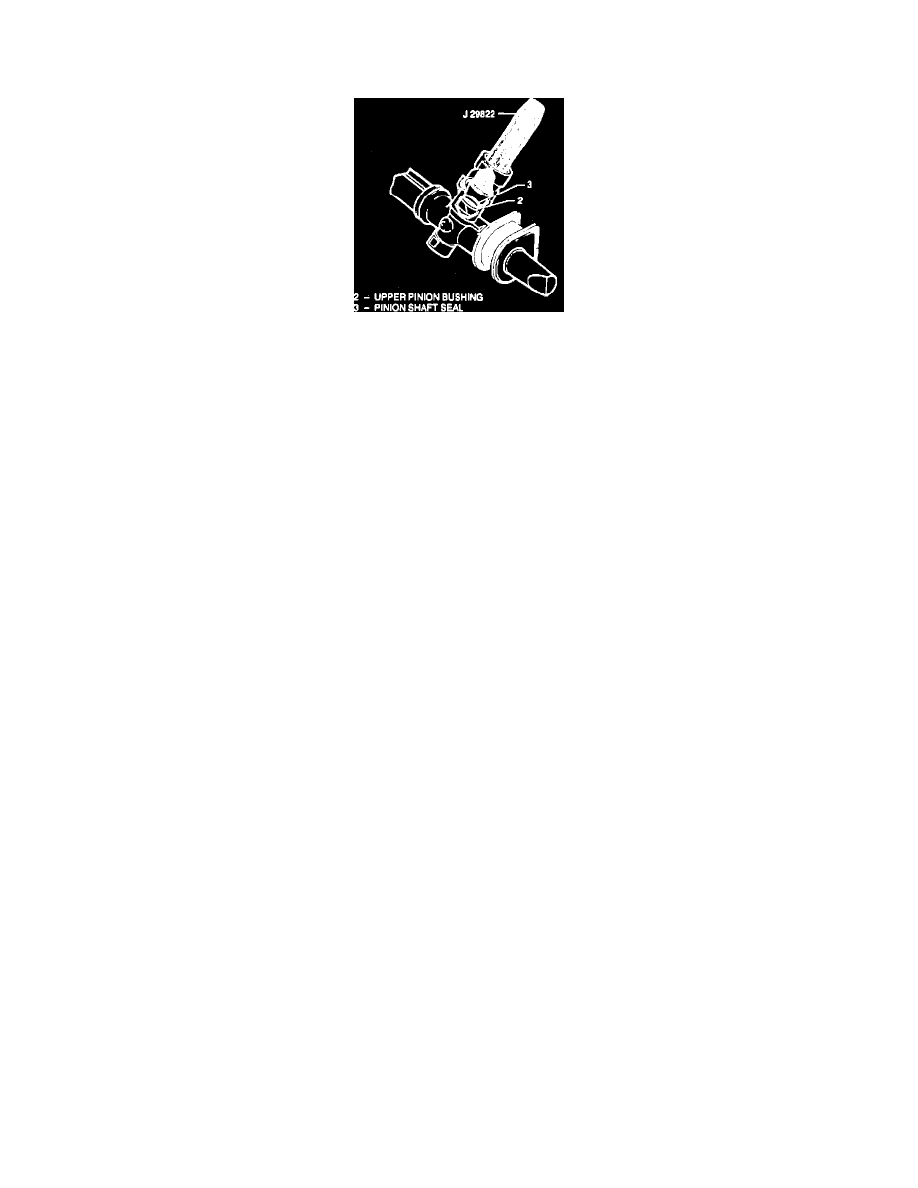

Fig. 24 Pinion Shaft Seal & Bushing Removal
1.
Remove upper pinion bushing and seal with a hearty punch, and install new bushing, Fig. 24.
2.
Using pinion seal installer, tool No. J 29822 seat new seal in housing with seal tip facing up.
