Skylark L4-138 2.3L SOHC VIN 3 MFI QUAD 4 (1992)
Transmission Mount: All Technical Service Bulletins
A/T - Clunk Noise From Driver's Side On Turns
Bulletin:
93-6-7
Date:
Dec.'92
Ref.No.:
93-66-6
Corp.Ref.No.:
237106R
SUBJECT:
CLUNK NOISE FROM DRIVER'S SIDE ON TURNS (CHECK TORQUE OF TRANSAXLE MOUNT PIPE EXPANSION BOLT)
MODELS AFFECTED:
1992-93 SKYLARK
CONDITION:
Some 1992-93 Skylarks may have a clunking noise coming from the driver's side of the car on turns. This noise can be misdiagnosed as a suspension
clunk noise.
CAUSE:

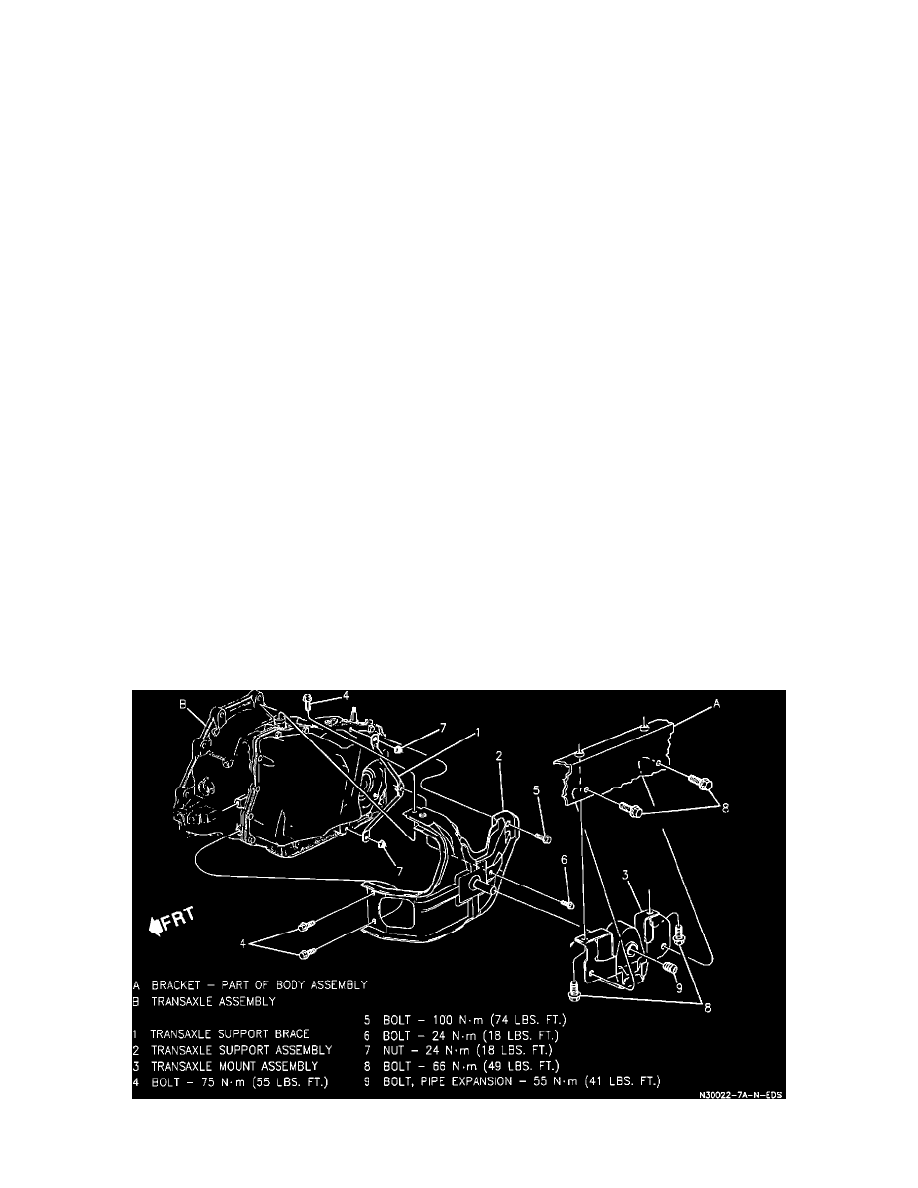

The pipe expansion bolt in the transaxle support assembly may not be tightened to specifications. This could allow the transaxle support assembly to
move slightly in the transaxle mount assembly which causes the noise.
CORRECTION:
Check tightening specification of the pipe expansion bolt and tighten to specification if necessary.
SERVICE INFORMATION:
1.
Raise and support vehicle, refer to SECTION 0A in the respective 1992 or 1993 Skylark Service Manual.
2.
Remove left front tire and wheel assembly.
