ABS Lamp Driver: Diagrams

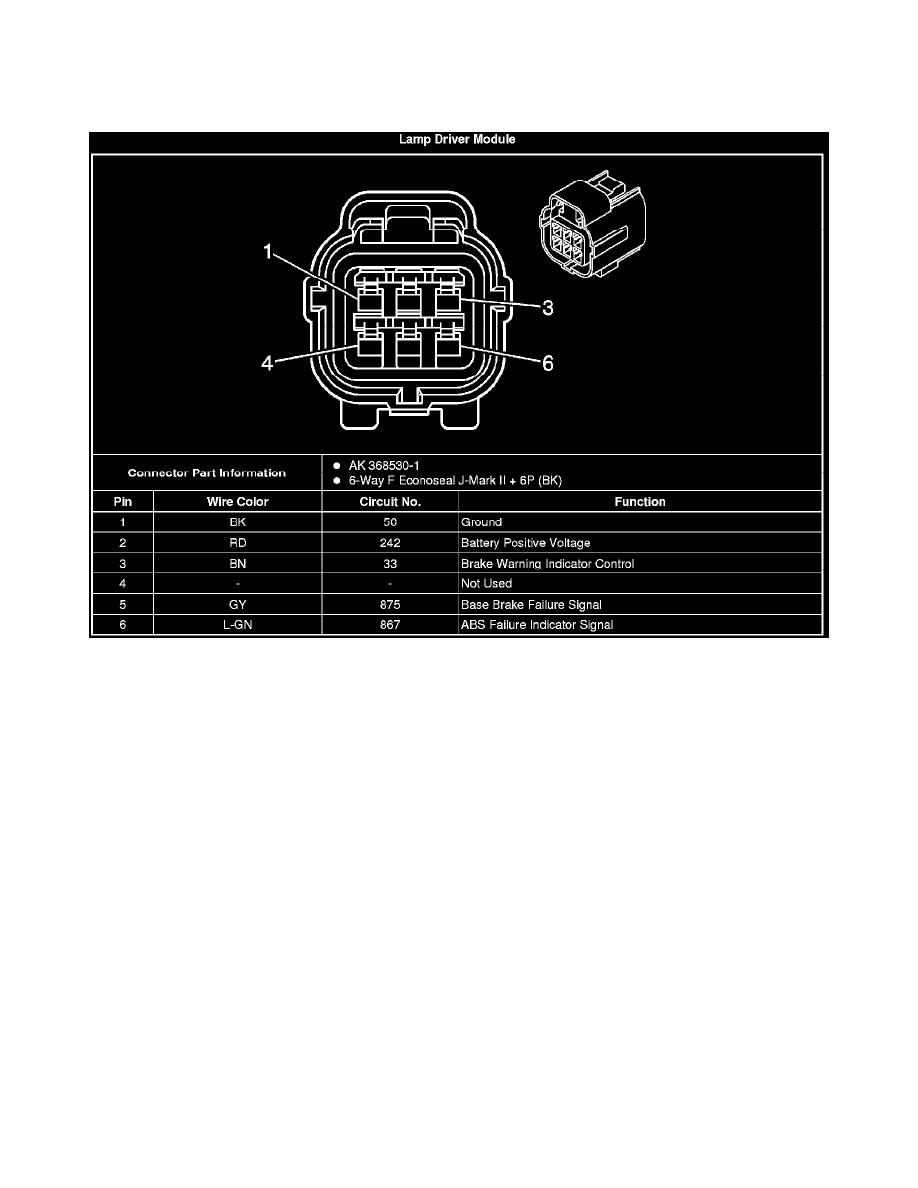

Antilock Brake System Connector End Views (Hatchback)

Antilock Brake System Connector End Views (Hatchback)

Brakes and Traction Control
Antilock Brakes / Traction Control Systems
ABS Lamp Driver
Component Information
Diagrams
Antilock Brake System Connector End Views (Hatchback)
