Aveo L4-1.6L (2008)
Fuel Injector: Locations
Engine Controls Component Views (Notchback)
Engine Controls Component Views (Notchback)

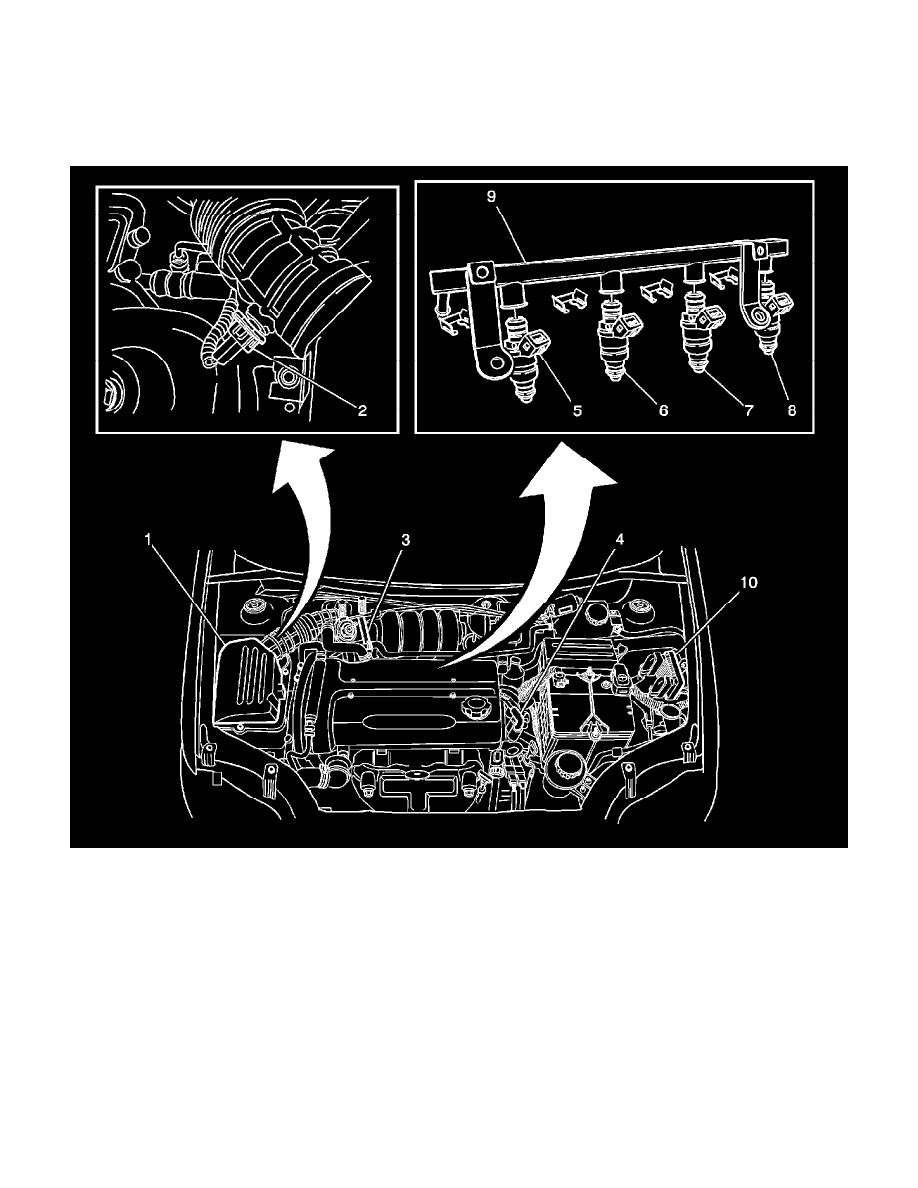

Fuel Injection and Air Cleaner
1 - Air Cleaner
2 - Intake Air Temperature (IAT) Sensor
3 - Throttle Body
4 - Ignition Coil (IC) Module
5 - Fuel Injector 1
6 - Fuel Injector 2
7 - Fuel Injector 3
8 - Fuel Injector 4
9 - Fuel Rail
10 - Engine Control Module (ECM)
