Aveo L4-1.6L (2008)
Clutch Release Bearing: Service and Repair
Release Bearing Replacement
Tools Required
*
DT 47513 (DW210-030) Bushing Joint Pipe
*
DT 47514 (DW210-040) Bushing Remover/Installer
*
J 2619-01 (09930-30102) Sliding Shaft
*
09943-88211 Bushing, Bearing Installer
Removal Procedure
1. Remove the transaxle from the vehicle. Refer to Transmission Replacement (See: Manual Transmission/Transaxle/Service and Repair/Removal
and Replacement/D16 - Manual Transaxle) for the D16 transaxle or Transmission Replacement (See: Manual Transmission/Transaxle/Service and
Repair/Removal and Replacement/Y4M - Manual Transaxle) for the Y4M transaxle.

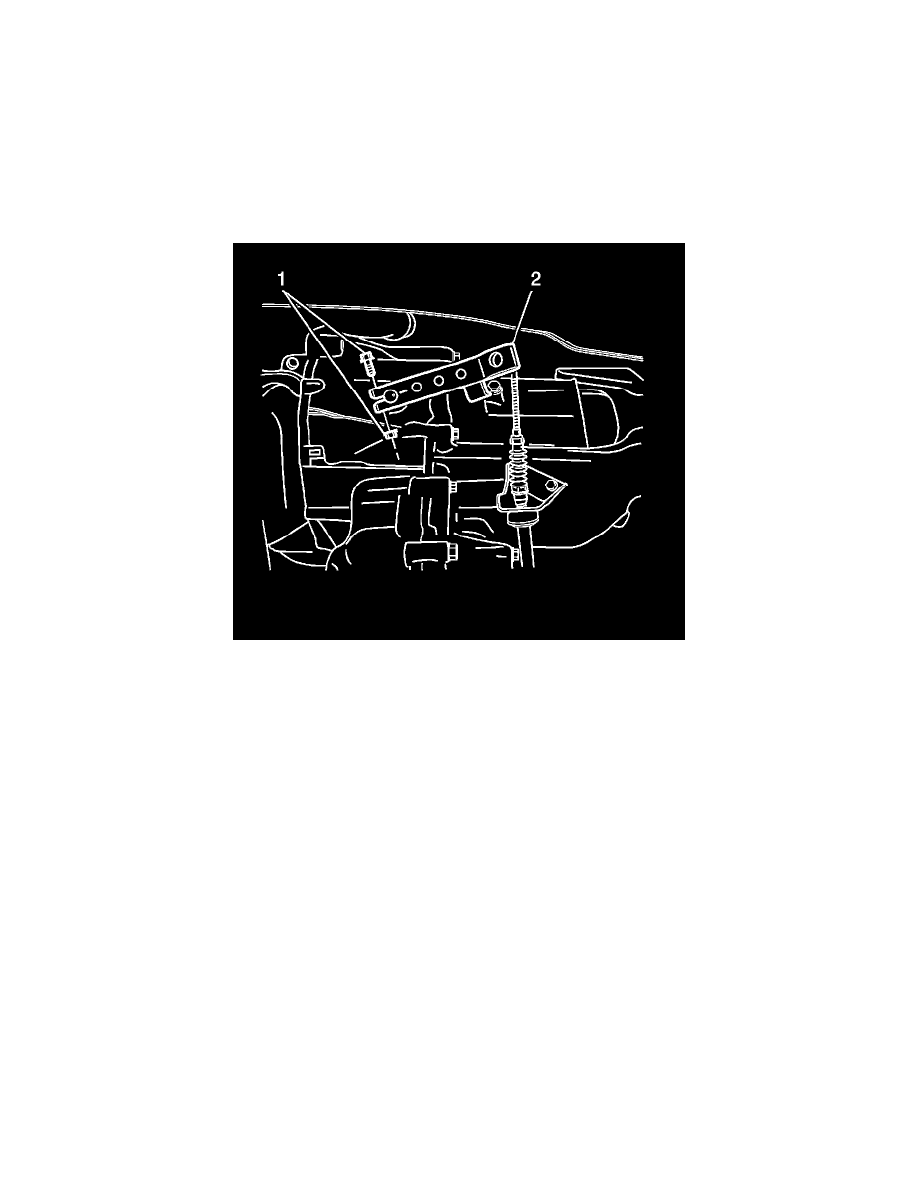

2. Remove the release arm (2). Refer to Clutch Release Arm Replacement (See: Clutch Release Fork/Service and Repair).
