Page 1

background image

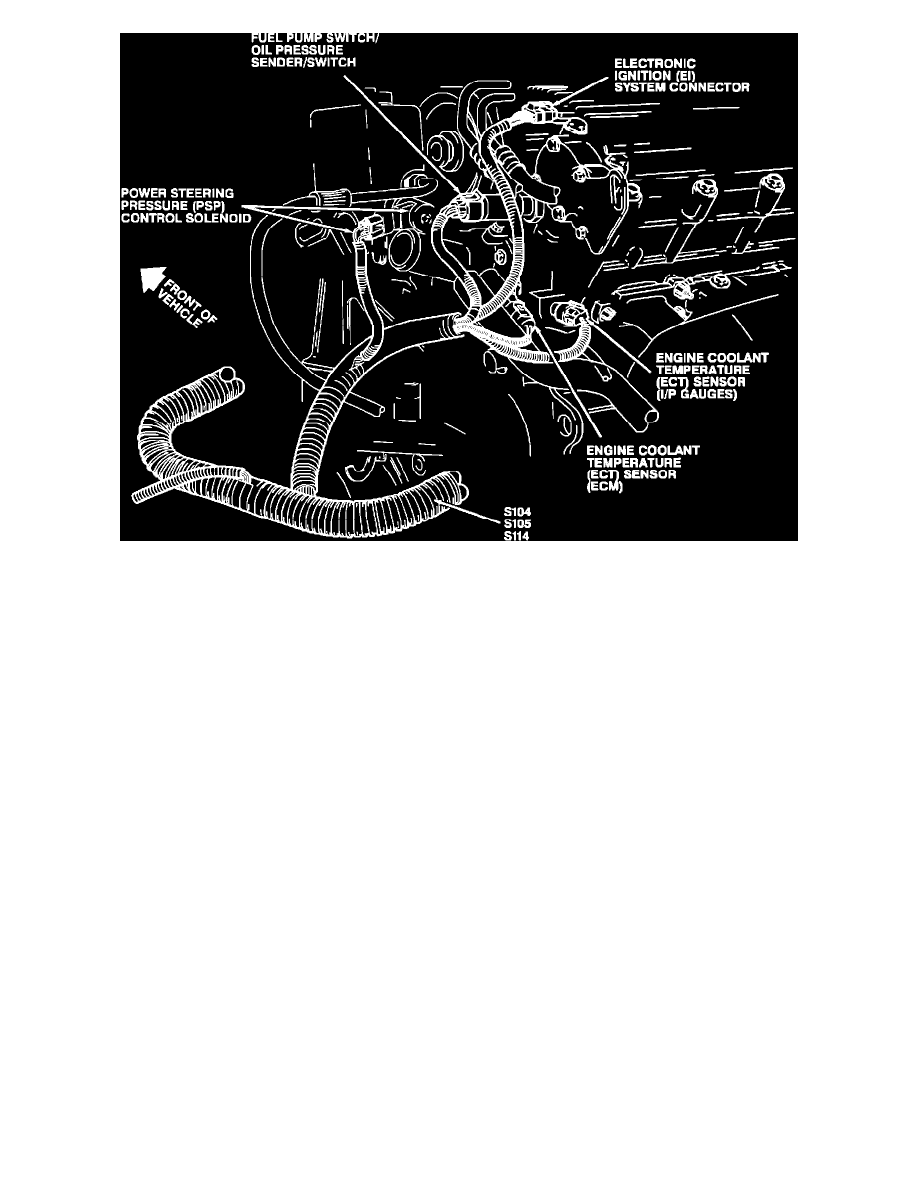

Left Hand Rear Of Engine Compartment

Engine, Cooling and Exhaust
Engine
Engine Lubrication
Oil Pressure Switch (For Fuel Pump)
Component Information
Locations
Oil Pressure Sender/Switch
