Electronic Spark Timing <--> [Electronic Spark Control Module] > < Data Link Connector|Locations

Beretta L4-138 2.3L DOHC QUAD 4 HO MFI VIN A (1994)

Page 1
background image

Data Link Connector: Diagrams

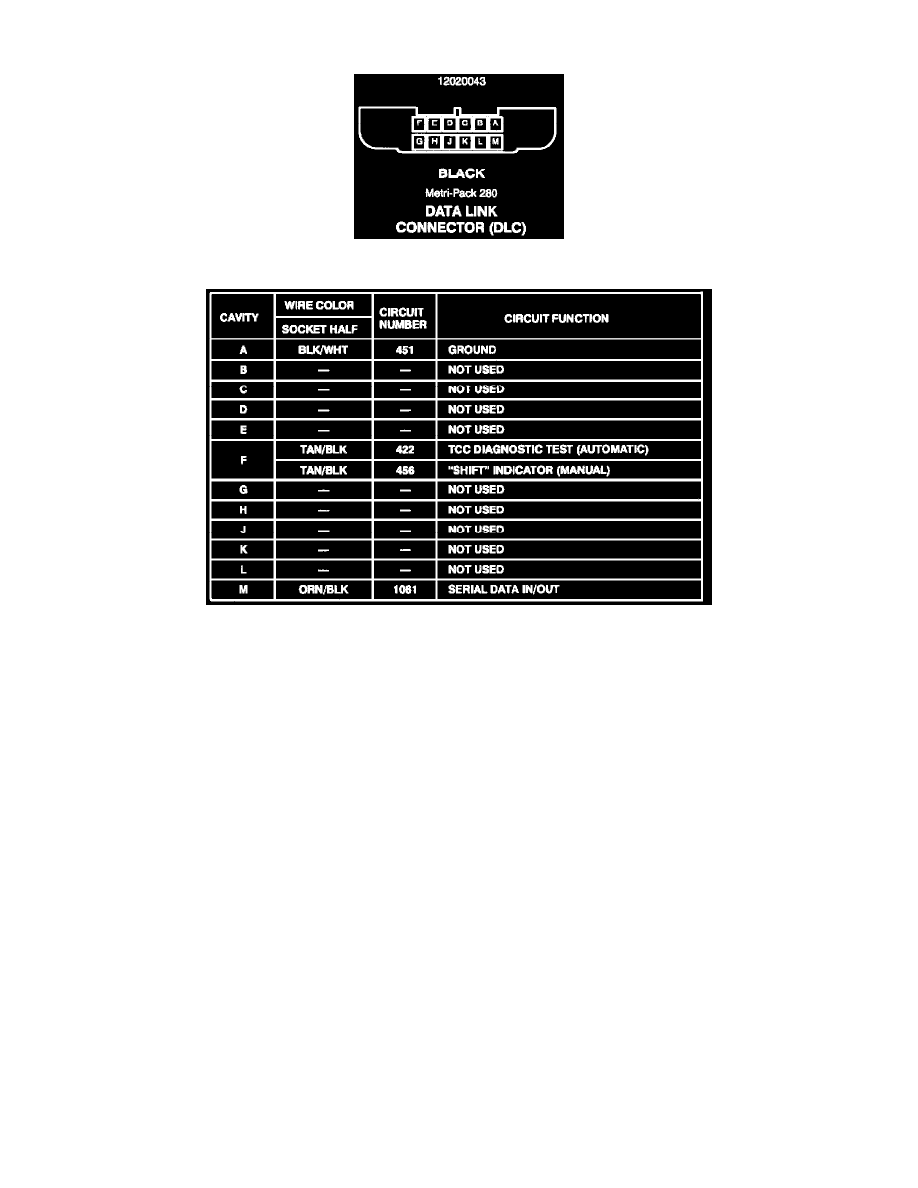

Harness Connector Faces: Data Link Connector (DLC)

Harness Connector Faces: Data Link Connector (DLC) (Description)

Electronic Spark Timing <--> [Electronic Spark Control Module] > < Data Link Connector|Locations
