Engine Control Module: Diagrams

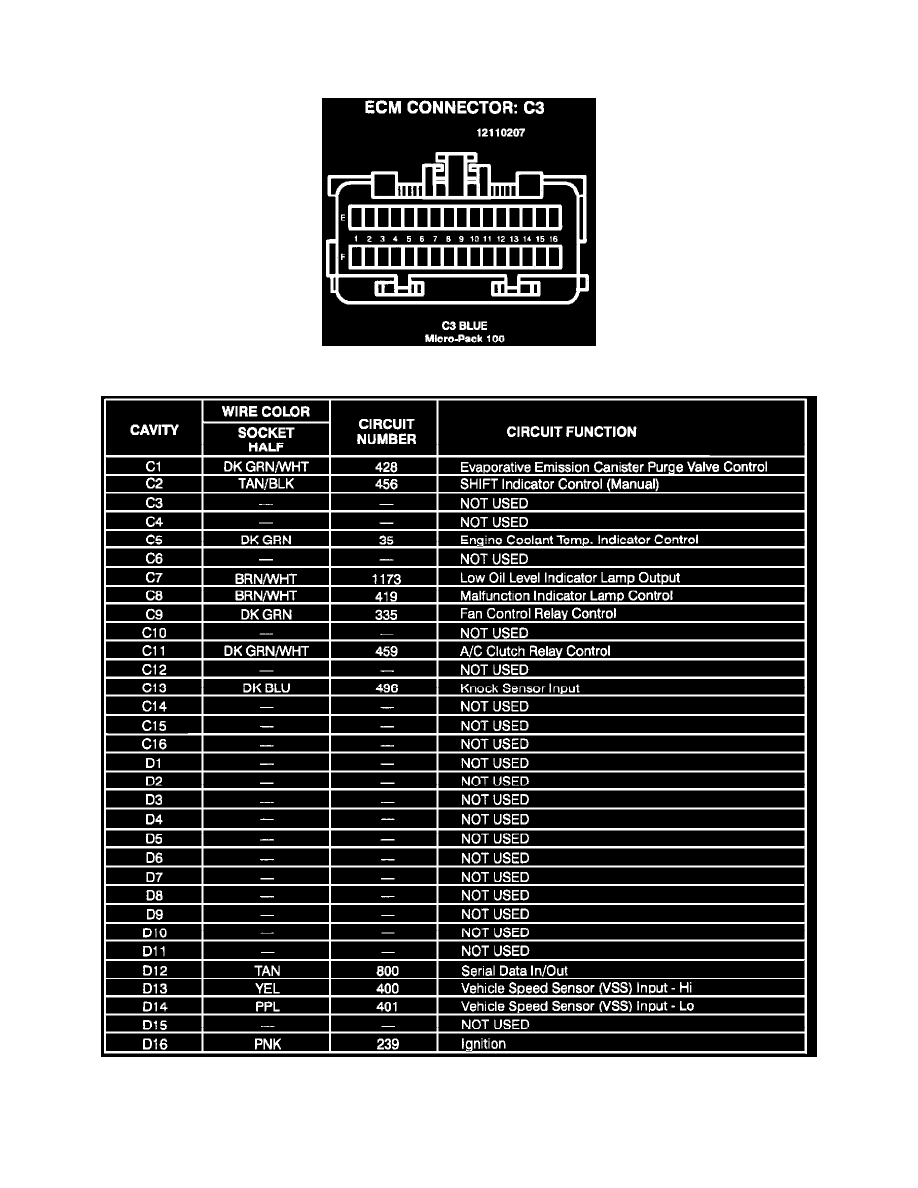

C3 (Blue)

ECM Connector: C3

ECM Connector: C3

Powertrain Management
Computers and Control Systems
Engine Control Module / Component Information
Diagrams / C1 (Pink)
Page 2847
