Beretta L4-138 2.3L DOHC QUAD 4 HO MFI VIN A (1994)
Ignition Coil: Service and Repair

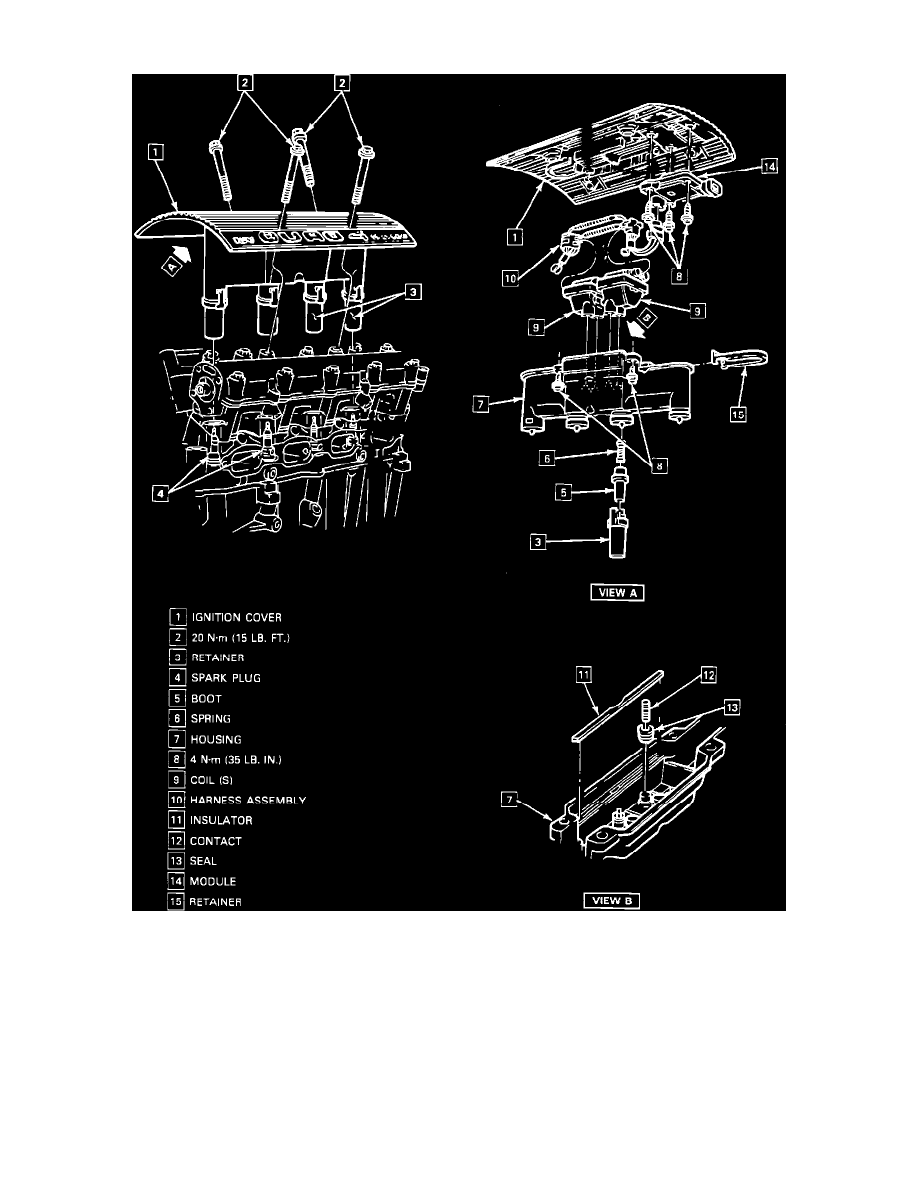

Ignition Coil And Module Assembly
REMOVAL
1.
Remove negative battery cable.
2.
Disconnect 11 pin IDIS harness connector.
3.
Remove ignition system assembly to cam housing bolts (4).
4.
Remove ignition system assembly from engine.
5.
Remove housing to cover screws (4).
6.
Remove housing from cover.
7.
Disconnect coil harness connectors (2).
8.
Remove Coils, contacts, and seals from cover.
INSTALLATION
