Pinout Values and Diagnostic Parameters|Page 2306 > < C1 (Pink)|Page 2303

Beretta L4-138 2.3L DOHC QUAD 4 HO MFI VIN A (1994)

Page 1
background image

Engine Control Module: Pinout Values and Diagnostic Parameters

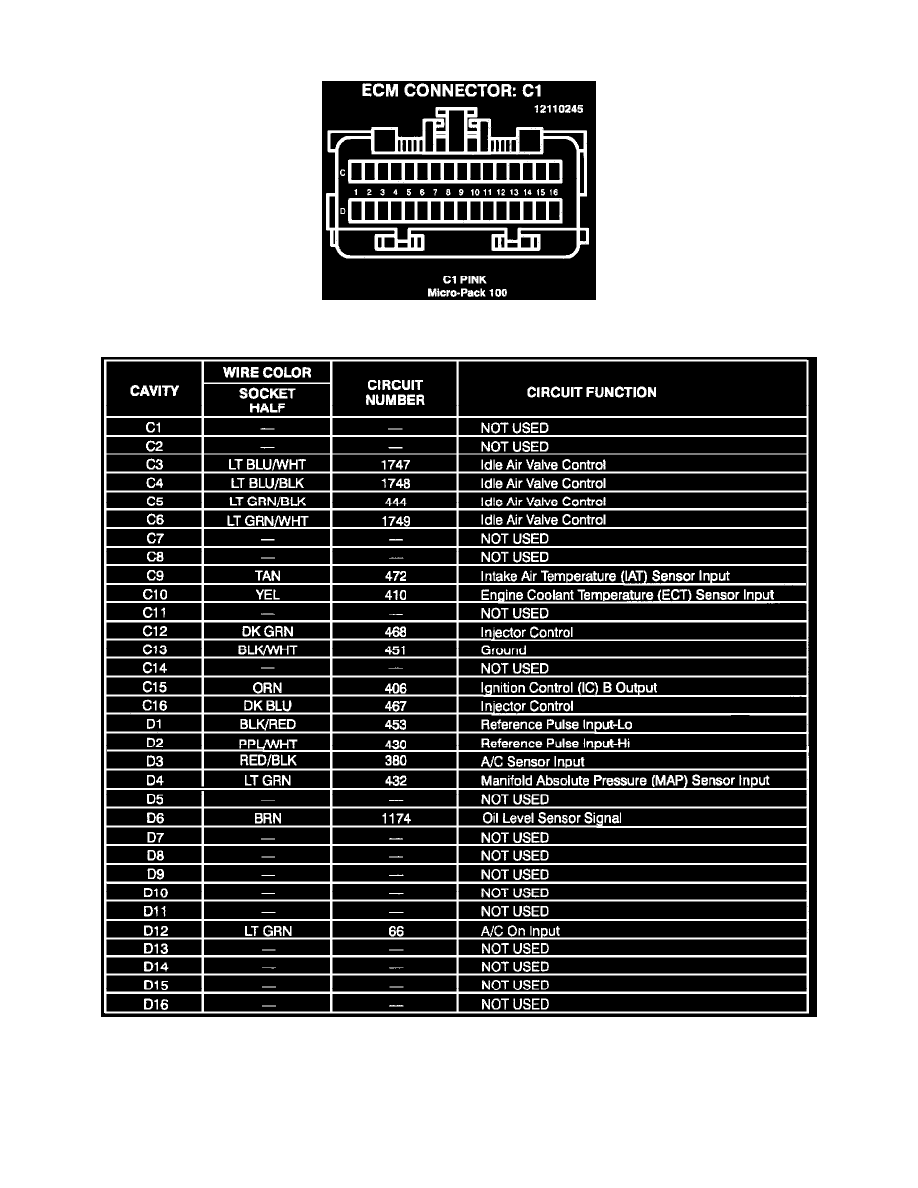

ECM Connector: C1

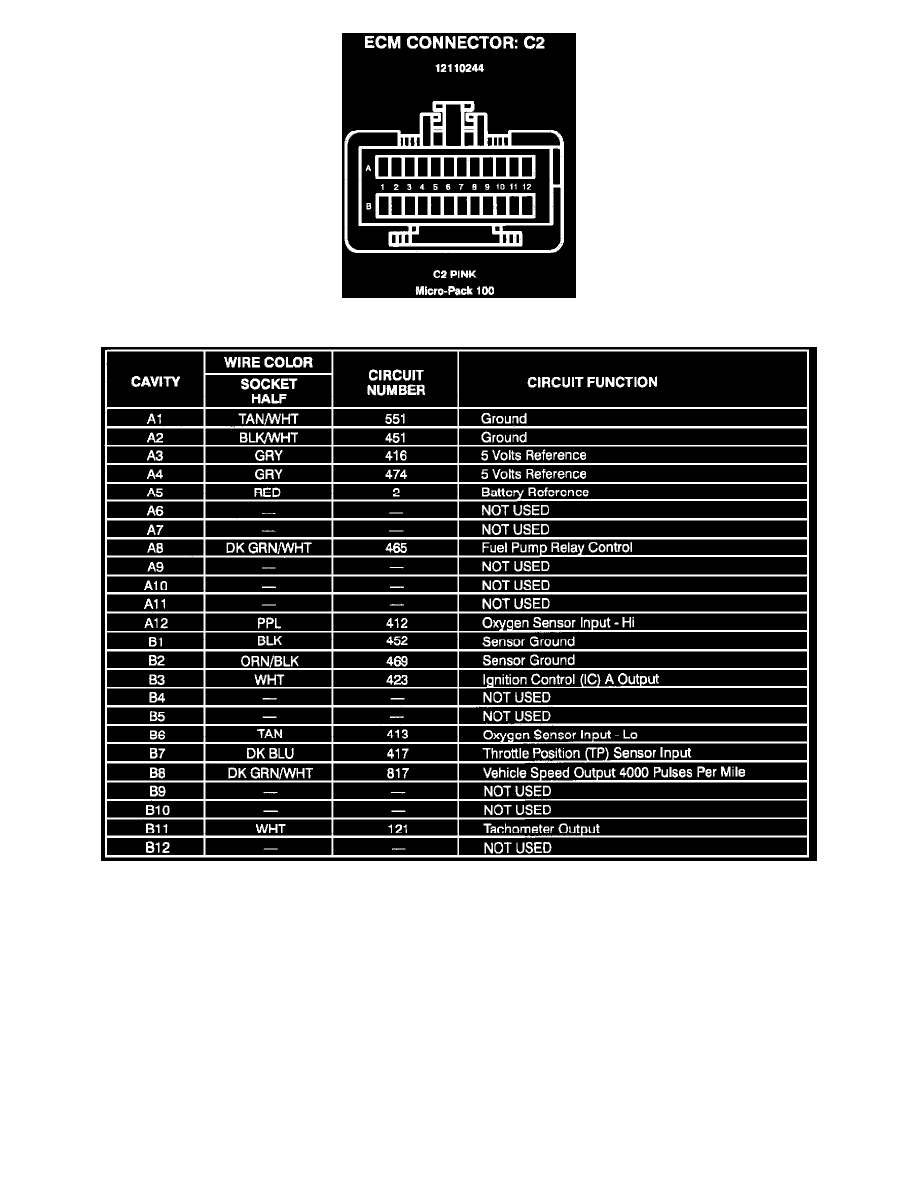

ECM Connector: C1

Pinout Values and Diagnostic Parameters|Page 2306 > < C1 (Pink)|Page 2303
