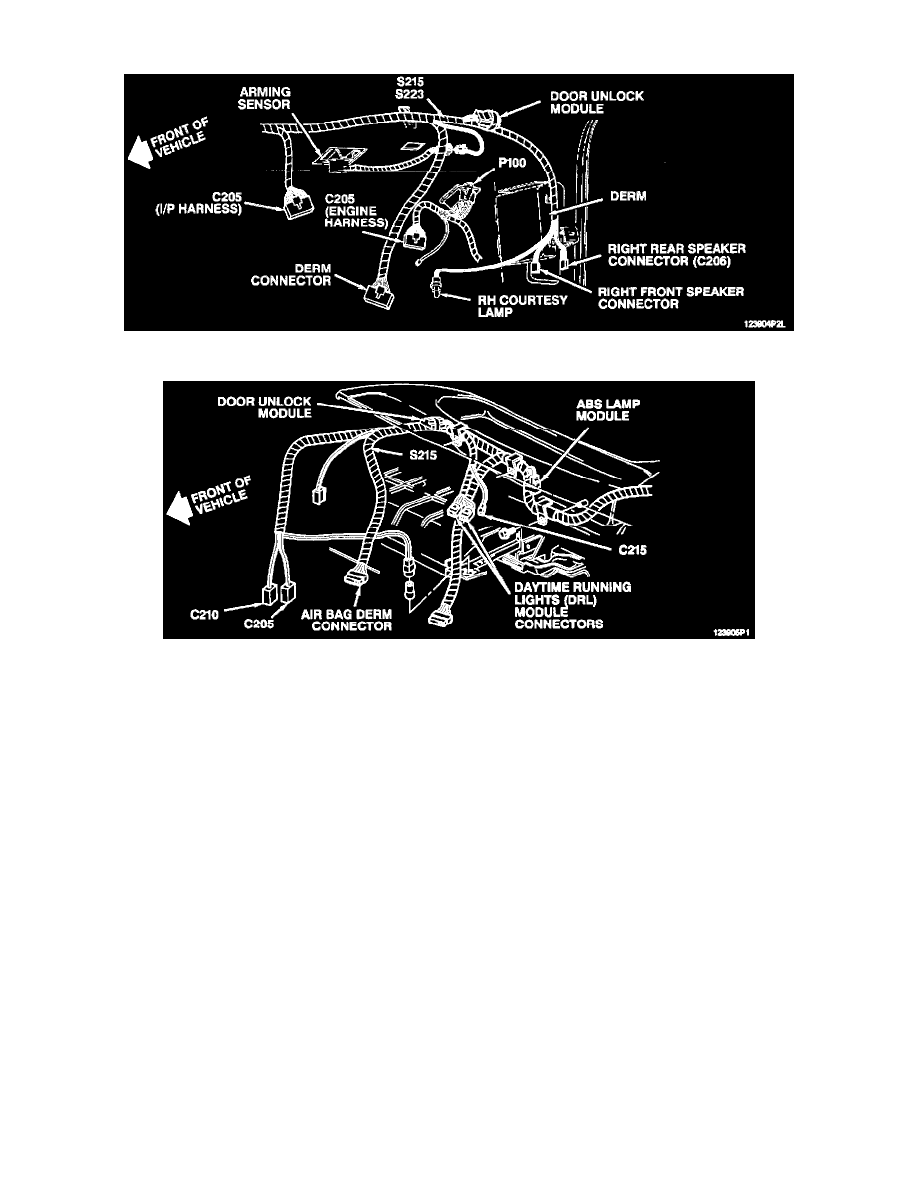

Air Bag Control Module: Connector Locations

Behind RH Side Of I/P

Behind RH Side Of I/P

Restraint Systems
Relays and Modules - Restraint Systems / Air Bag Control Module / Component Information
Locations / Component Locations
Page 6790
