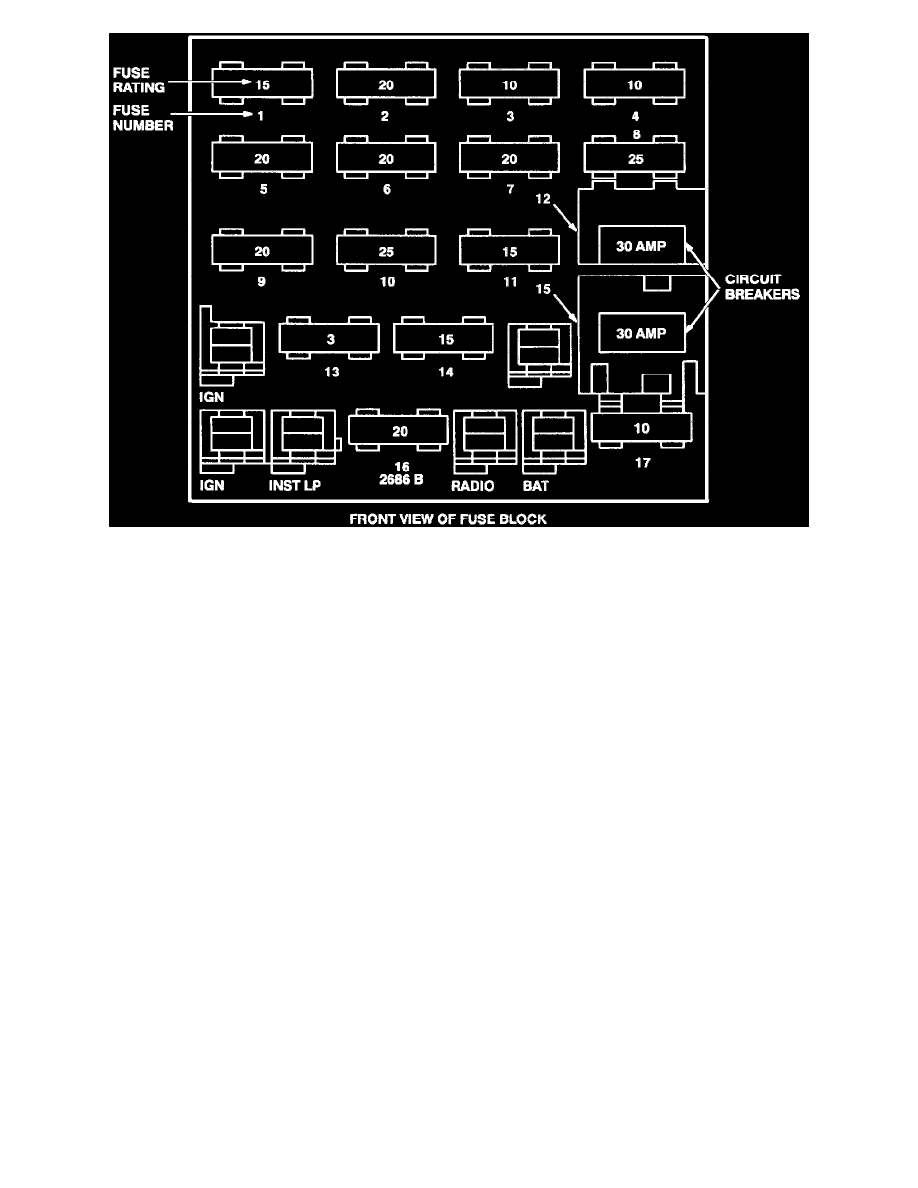

Fuse Block Details: Front View Of Fuse Block

Starting and Charging
Power and Ground Distribution
Fuse Block / Component Information
Application and ID
Front View of Fuse Block
