Beretta L4-138 2.3L DOHC QUAD 4 HO MFI VIN A (1994)
Steering Gear: Service and Repair
Boot or Rack Guide

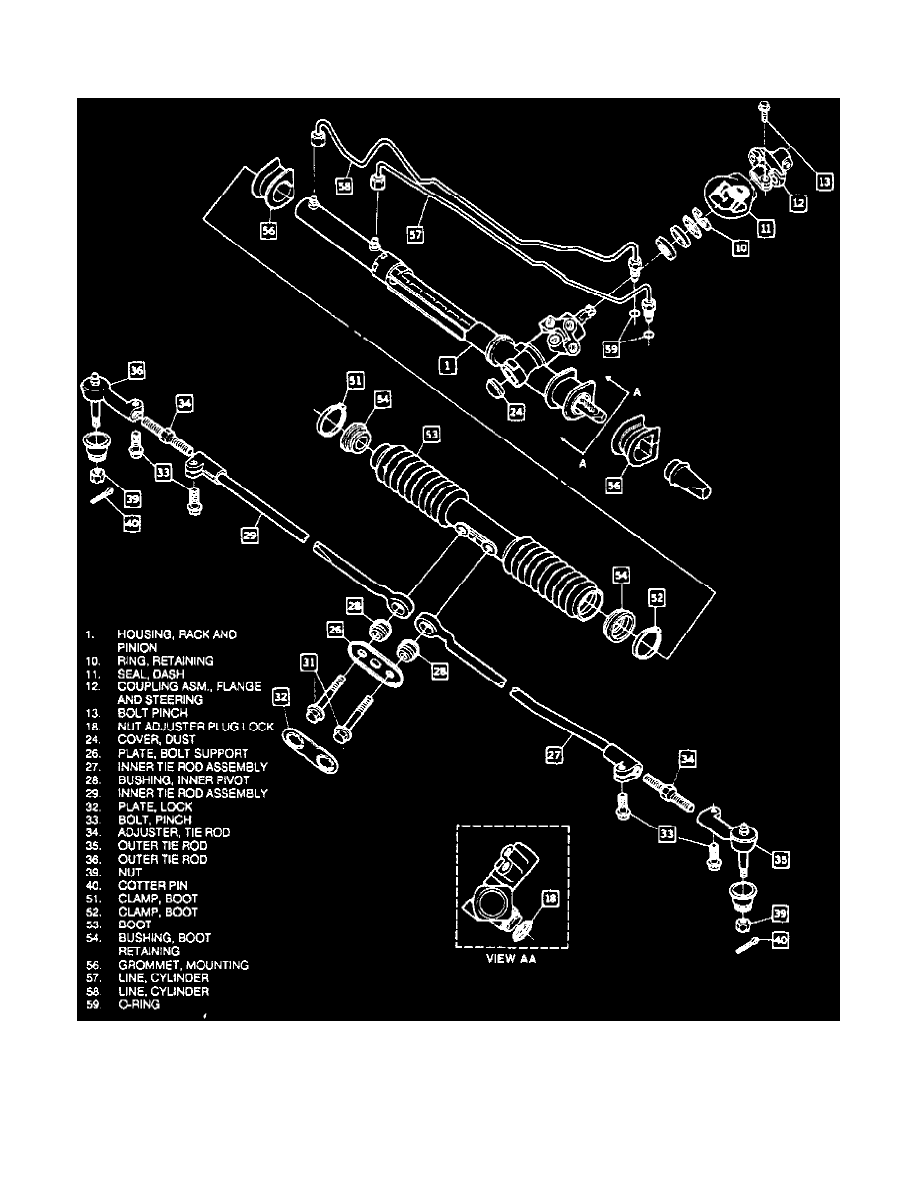

Fig. 24 Exploded View Of Power Rack & Pinion Assembly
1. Cut off righthand mounting grommet and boot clamps, Fig. 24.
2. Slide boot retaining bushing from rack and pinion boot.
3. Slide boot assembly from rack and pinion housing.
4. Remove insert and rack guide assembly as necessary.
